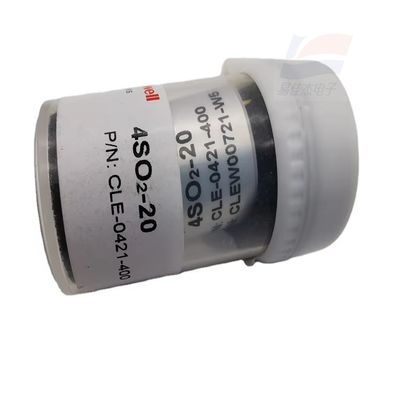

YJJ 4SO2-20 CLE-0421-400 Electrochemical Sulfur Dioxide Gas Sensor For Detecting Concentration SO2 Air

Large Image : YJJ 4SO2-20 CLE-0421-400 Electrochemical Sulfur Dioxide Gas Sensor For Detecting Concentration SO2 Air

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	4SO2-20 CLE-0421-400

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Canned
Delivery Time:	5-8 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2200

Contact Now

YJJ 4SO2-20 CLE-0421-400 Electrochemical Sulfur Dioxide Gas Sensor For Detecting Concentration SO2 Air

Description

Range:	0 - 20 Ppm	Maximum Load:	150 Ppm
Sensitivity:	0.5 ± 0.1 μA/ppm At 20℃	Response Time:	T90 ≤ 45 Seconds
Baseline Stability:	Baseline Drift < ±0.2 μA At 20℃	‌Humidity Range‌:	15%~90% RH
Highlight:	YJJ electrochemical sulfur dioxide sensor , SO2 gas concentration detector , air quality sulfur dioxide sensor

Product Description:

YJJ 4SO2-20 CLE-0421-400 Electrochemical Sulfur Dioxide Gas Sensor For Detecting Concentration SO2 Air

Features:

Brand of 4so2-20 sulfur dioxide sensor: RAE

Output: -

Range: 0-20 PPM

Product no. : cse-0421-400

Response time: T90≤45 seconds

Resolution: 0.1 PPM

Sensitivity: 0.5±0.1 A/ PPM

Maximum detected concentration: 150ppm

Normal detection range: 0-20ppm

Operating temperature range: -20℃ ~ 50℃

Type: electrochemical gas sensor

Typical application: sulfur dioxide concentration detection

Specifications:

Detection range	0-20 ppm
Sensitivity	0.5 ± 0.1 μA/ppm
Resolution	0.1 ppm
Response time (T90)	≤ 45 seconds

YJJ 4SO2-20 CLE-0421-400 Electrochemical Sulfur Dioxide Gas Sensor For Detecting Concentration SO2 Air 0
