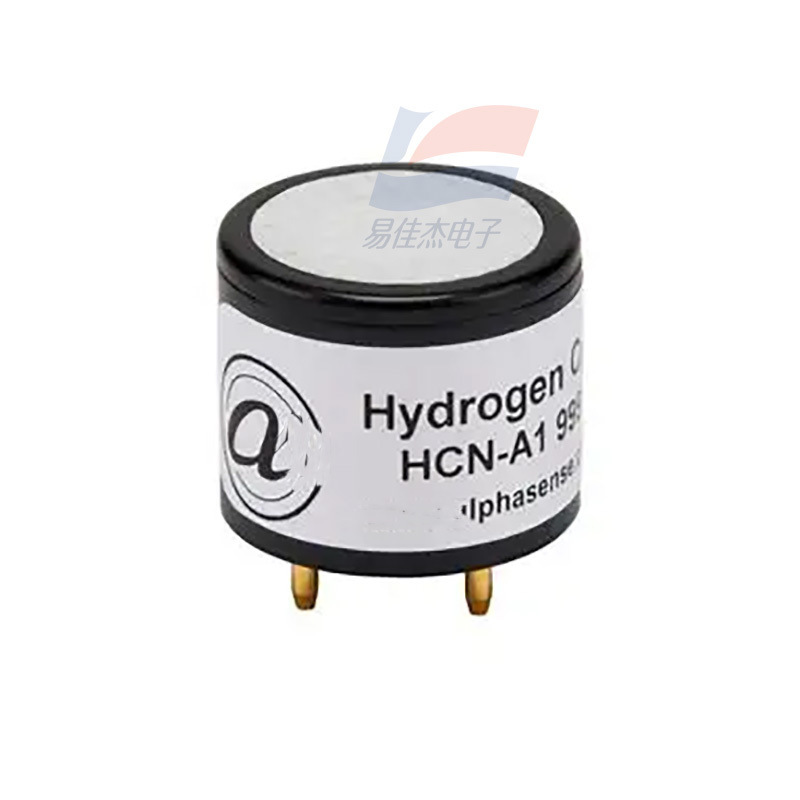

HCN-A1 Hydrogen Cyanide Gas Sensor Used For Chemical Leak Detection

Large Image : HCN-A1 Hydrogen Cyanide Gas Sensor Used For Chemical Leak Detection

Product Details:

Place of Origin:	UK
Brand Name:	Alphasense
Model Number:	HCN-A1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

HCN-A1 Hydrogen Cyanide Gas Sensor Used For Chemical Leak Detection

Description

Measurement Range:

100ppm

Sensitivity:

30ppm

Zero-point Current:

<±2ppm

Resolution:

<0.05ppm

Highlight:

hydrogen cyanide gas sensor

chemical leak detection sensor

HCN-A1 gas sensor

HCN-A1 Hydrogen Cyanide Gas Sensor Used For Chemical Leak Detection

The HCN-A1 electrochemical hydrogen cyanide gas sensor is commonly used in chemical leak detection, environmental monitoring, and other applications.

Physical and usage cycle parameters

Dimensions	Diameter 20.2mm, Overall height 16.5mm (including label), Dimensional tolerance ±0.15mm
Weight	<6 grams
Operating life	Output signal drops to 80% of initial value in over 12 months, official 12-month warranty
Storage period	6 months in a sealed environment at 3-20℃

Environment adaptation parameters

Operating temperature	-30~50°C; sensitivity at -20°C is 75-95% of that at 20°C, and sensitivity at 50°C is 105-120% of that at 20°C.
Operating humidity	15-90% RH (continuous operation)
Operating pressure	80-120 kPa
Temperature effect on zero point	zero-point change relative to 20°C at -20°C < 0-1 ppm; zero-point change relative to 20°C at 50°C < ±1 ppm.

Electrical and interference related parameters

Recommended load resistor	10 - 33Ω
Bias requirement	No additional bias voltage required

HCN-A1 Hydrogen Cyanide Gas Sensor Used For Chemical Leak Detection 0
