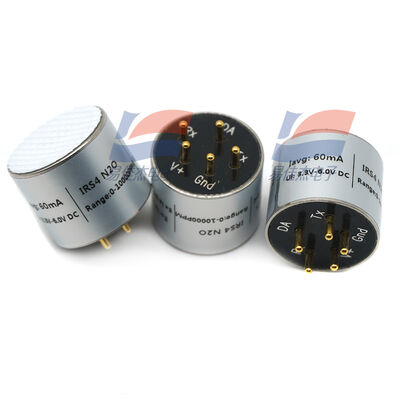

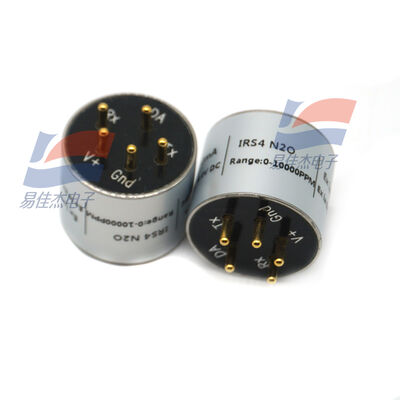

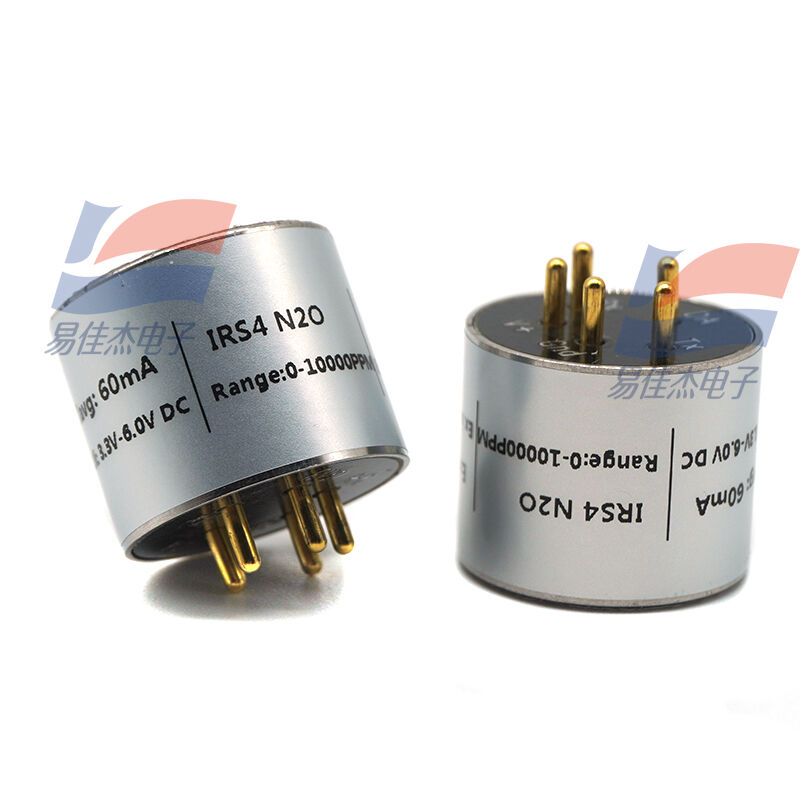

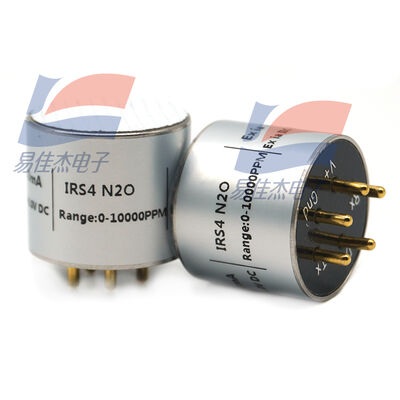

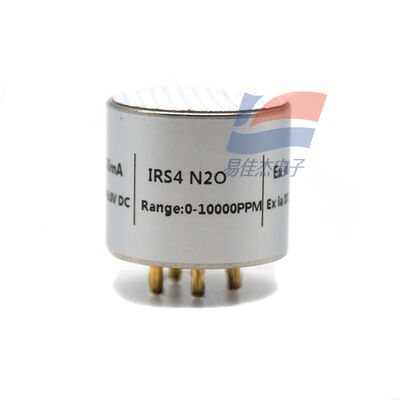

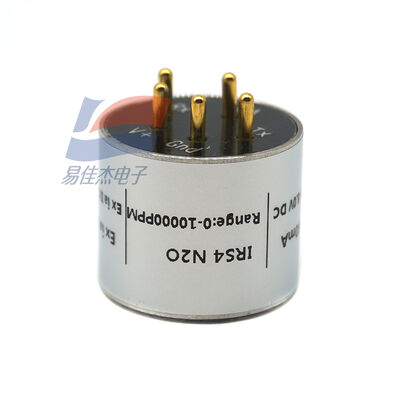

IRS4 N2O Nitrous Oxide Gas Sensor N2O G4 IR Non Dispersive Infrared

Large Image : IRS4 N2O Nitrous Oxide Gas Sensor N2O G4 IR Non Dispersive Infrared

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	IRS4 N2O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

IRS4 N2O Nitrous Oxide Gas Sensor N2O G4 IR Non Dispersive Infrared

Description

Detected Gas:

Nitrous Oxide (N₂O, Laughing Gas)

Detection Principle:

Non-dispersive Infrared (NDIR) Technology

Standard Measurement Range:

0-1000ppm, 0-2000ppm (standard); 0-10%, 0-100% Vol (industrial Grade)

Resolution:

≤1ppm (low Range); ≤0.1% Vol (high Range)

Highlight:

IRS4 N2O gas sensor

Nitrous oxide IR sensor

N2O G4 infrared detector

IRS4 N2O Nitrous Oxide Gas Sensor N2O G4 IR Non Dispersive Infrared

Specification:

Accuracy	±2ppm (0-100ppm); ±10% of reading (100-1000ppm); ±2% FS (full scale)
Response time	≤7 seconds (data refresh); ≤45 seconds (gas response)

Electrical and output characteristics

Power supply voltage	9-24VDC (industrial modules); 5VDC (OEM miniature sensors)
Output signal	4-20mA, 0-10VDC (analog); RS232/RS485 (digital)
Power consumption	≤100mA (24VDC power supply)
Alarm output	Optional 1-3 level relay alarm (contact capacity 8A/250VAC)

Environmental and mechanical properties

Operating temperature	0-50℃ (standard); -40-85℃ (wide temperature range)
Operating humidity	0-99% RH (non-condensing)
Protection rating	IP65 (industrial grade); IP40 (OEM module)
Sampling method	Diffusion/Pump suction optional
Gas medium	Non-corrosive gas (requires filtration of oil and dust)

Stability and Calibration

Zero drift	≤±2% FS/year
Span drift	≤±2% FS/year
Calibration cycle	6-12 months (recommended)
Temperature compensation	Built-in automatic temperature compensation (0-50℃ range)

IRS4 N2O Nitrous Oxide Gas Sensor N2O G4 IR Non Dispersive Infrared 0
