Product Description:

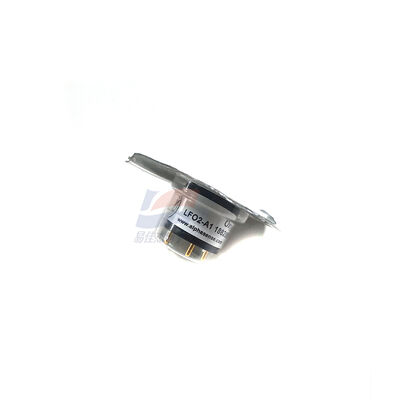

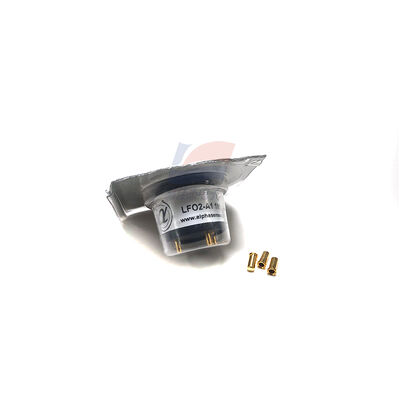

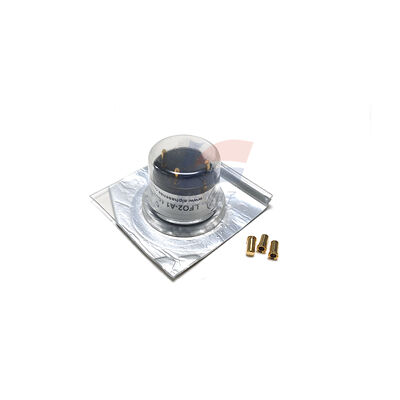

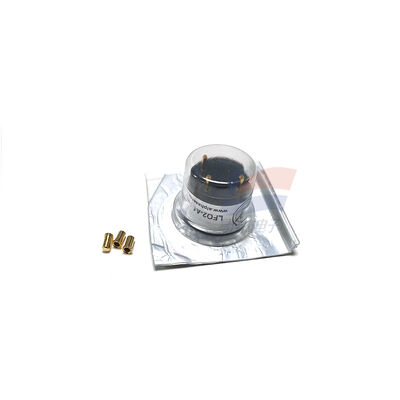

LFO2-A1 Electrochemical Long-Life Lead-Free Oxygen Sensor Is Used Oxygen Alarm Devices
Features:
Measurement range: The oxygen concentration detection range is from 0% to 30%, suitable for oxygen monitoring in regular environments.
Working life: The typical working life exceeds 5 years, featuring a long service life and reducing the frequency of replacements.
Output signal: At an oxygen concentration of 20.9%, the output current ranges from 80 to 130 μA, with good linearity. The signal is almost linear within the 0-30% range.
Response Time: The T90 response time is less than 10 seconds (from 20.9% to 0% oxygen concentration), and the typical average response time is approximately 6 seconds.
Dimensions: Diameter 20.2 mm, Height 16.5 mm, Weight less than 6 grams, Easy to integrate into compact devices.
Temperature range: The operating temperature is from -30℃ to 50℃, suitable for a wide range of industrial environments.
Humidity range: The humidity detection range is from 5% to 95% relative humidity, without condensation.
Pressure range: The working pressure is 80–120 kPa, suitable for environments ranging from normal pressure to low pressure.
Storage conditions: It is recommended to store at a temperature range of 3–20℃, and the maximum storage period is 6 months.
Application fields: This sensor is widely used in coal mines, steel industries, petrochemicals, medical equipment (such as ventilators), environmental monitoring and safety alarm systems, for example, oxygen alarms and gas analyzers.
Specifications:
| Range |
0 - 30% vol O₂ |
| Sensitivity |
80 - 130μA |
| Zero output |
< 0.3% vol O₂ |
| Measurement error |
< 0.1% vol |
| Response time |
10 seconds |
