MEv-GH hydrogen H2 Gas Sensor Electrochemical Low Consumption

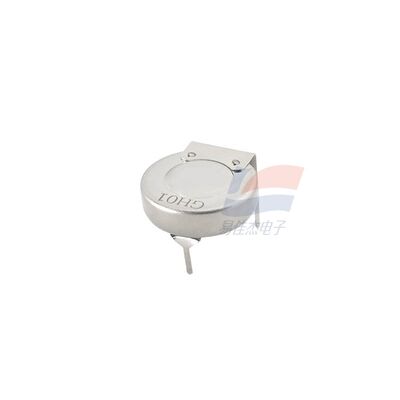

Large Image : MEv-GH hydrogen H2 Gas Sensor Electrochemical Low Consumption

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	MEv-GH

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

MEv-GH hydrogen H2 Gas Sensor Electrochemical Low Consumption

Description

Highlight:

hydrogen H2 gas sensor electrochemical

low consumption H2 gas sensor

MEv-GH hydrogen gas detector

MEv-GH hydrogen H2 Gas Sensor Electrochemical Low Consumption

Description
MEv-GH01, fuel cell type sensor, detects gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be detected by measuring value of current.

Application
It is widely used in H2 concentration detection in commercial, vehicle, small generator field and other fields.

Features
Low consumption, high precision, high

Specification:

Item	Parameter
Detection gas	H2
Measurement range	0～2000ppm
Max detecting concentration	5000ppm
Sensitivity	(0.5～1.5)nA/ppm
Resolution	1ppm
Response time(T90)	＜30S
Load resistance(recommended)	(500/1K/2K)Ω
Repeatability	＜5﹪output value
Output linearity	linear
Temperature range	-10℃～50℃(common) -40℃～70℃(occasionally)
Humidity range	15﹪～90﹪RH
Pressure range	Normal atmosphere ±10﹪
Anticipated using life	10 years
