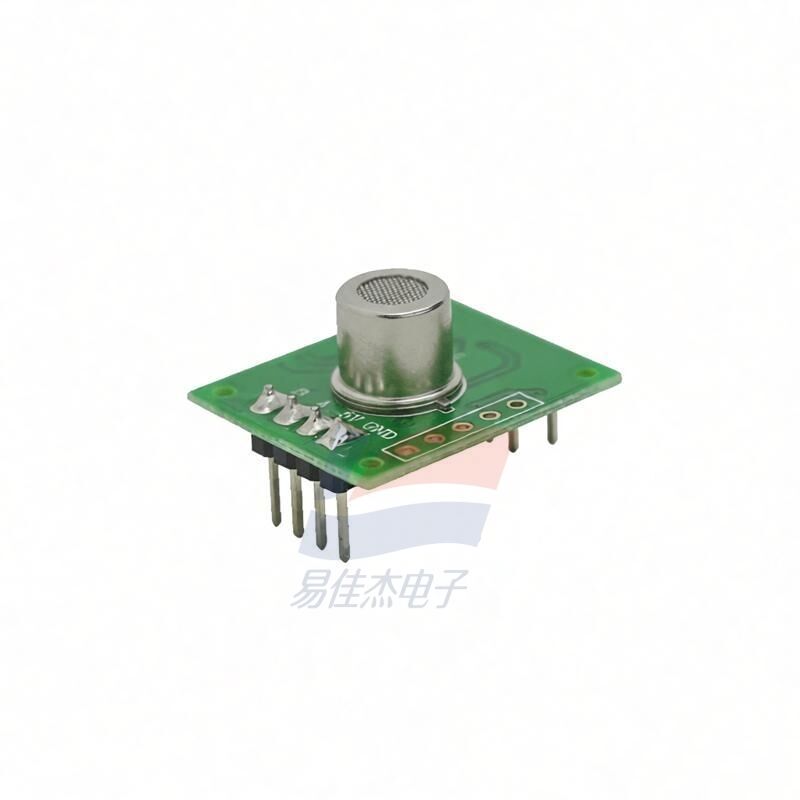

ZP13 Smoke Gas Sensor Plat Surfaced Semiconductor Sensor Highly Sensitivity

Large Image : ZP13 Smoke Gas Sensor Plat Surfaced Semiconductor Sensor Highly Sensitivity

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	ZP13

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	3000/pcs/month

Contact Now

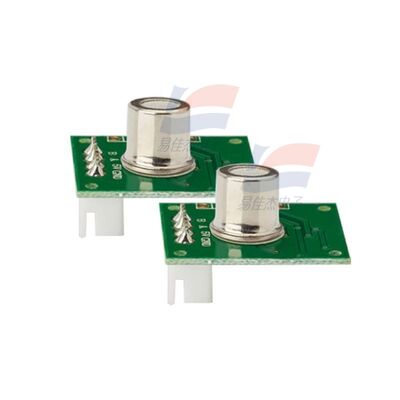

ZP13 Smoke Gas Sensor Plat Surfaced Semiconductor Sensor Highly Sensitivity

Description

Model No.:

ZP13

Detection Gas:

Propane, Smoke

Physical Interface:

XH2.54-4P Terminal Socket

Output Data:

A Signal On-off Output

Highlight:

Plat surfaced semiconductor gas sensor

ZP13 highly sensitive smoke sensor

Oxygen gas sensor with warranty

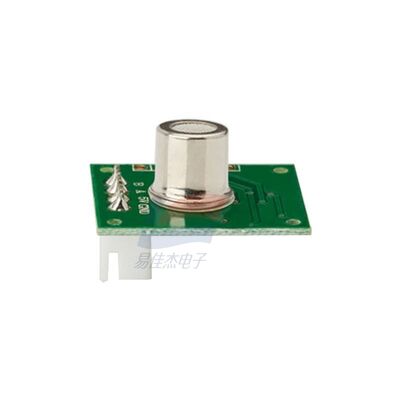

ZP13 Smoke Gas Sensor Plat Surfaced Semiconductor Sensor Highly Sensitivity

Features
Highly sensitivity, good long-term stability, calibrated, 3min preheating judgement, fault self-diagnosis, lowpower consumption, long lifespan, high cost-effective.

Main Application
Widely used in smoke alarm for home use, smoke alarm for industrial use and portable smoke detector

Specification:

Working voltage	5.0±0.2V DC(No voltage reverse protection)
Output data type	TTL level(200Ω protected resistance inside)
Working current	≤60mA
Warm up time	≤3 min
Response Time	≤20 s
Recovery Time	≤60 s
Operating Temperature	0～50℃
Operating Humidity	≤95％RH
Storage Temperature	-20～60℃
Storage Humidity	≤60％RH
Size	24.1×20.1×15.6mm(L ×W×H)
Weight	≤20g
Sensitivity Attenuator	≤1%/ year

ZP13 Smoke Gas Sensor Plat Surfaced Semiconductor Sensor Highly Sensitivity 0
