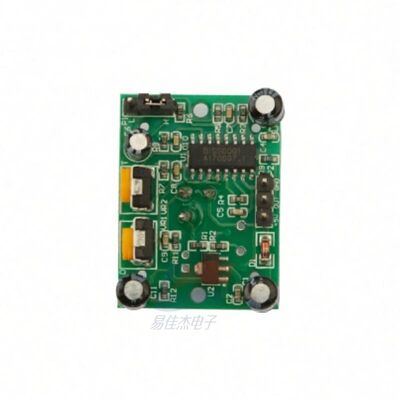

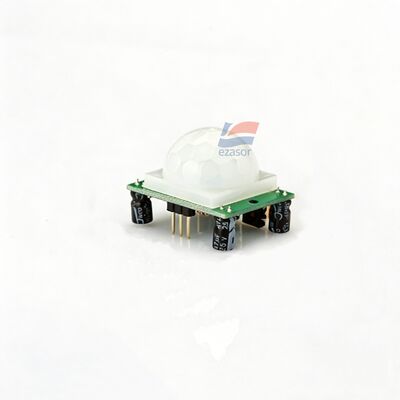

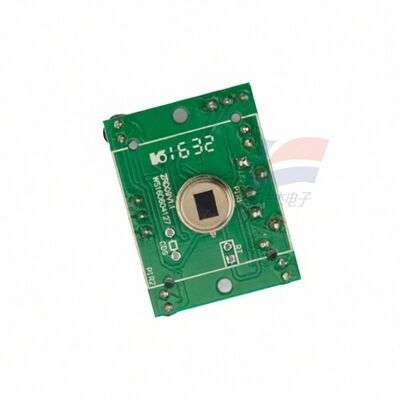

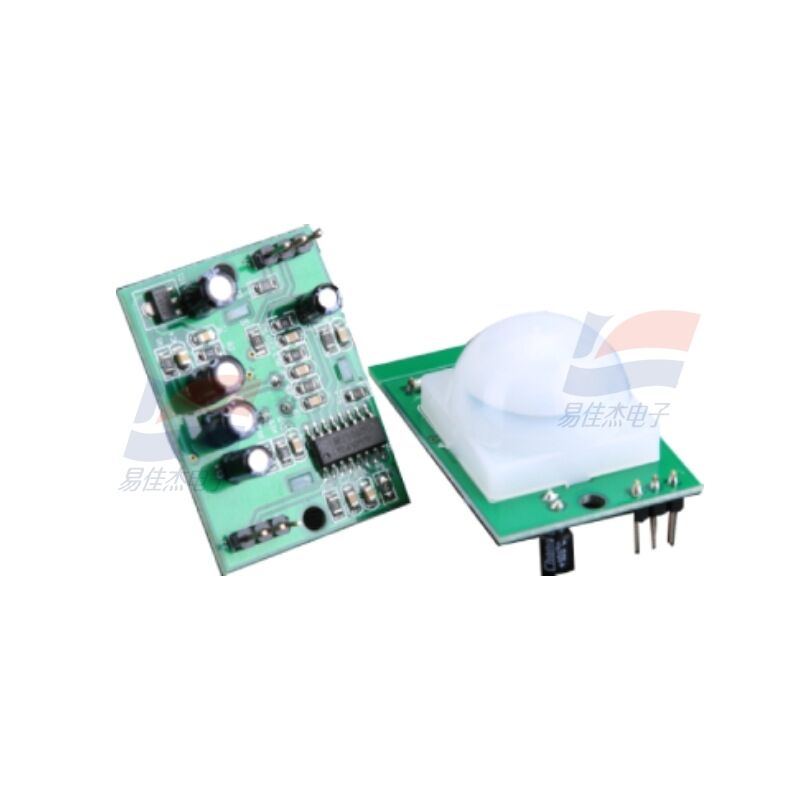

ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared

Large Image : ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared

Product Details:

Place of Origin:	China
Brand Name:	Winsen
Model Number:	ZRD09

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Month

Contact Now

ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared

Description

Working Voltage:

5～20V DC

Static Current:

＜65µA, @5V

Level Output:

High Level, 3V; Low Level, 0V

Trigger Mode:

Repeatable/Unrepeatable

Highlight:

PIR sensor module for human detection

Pyroelectric infrared motion sensor

ZRD-09 PIR body induction module

ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared

Features:
Automatic Induction;
Photo-resistor control;
Two trigger modes;
Induction blocking time;
High-level output;

Applications:
Applications:
Security products,
Human body induction toys,
Human body induction lamps, switches, and appliances
Industrial automatic controlling

Specification:

Delay Time	3~300S(adjustable)
Blocking Time	Default as 4S
PCB Size	32×24×24mm(L×W×H)
Detection Angle	100°(Depend on the Lens)
Working Temperature	-10℃ ~ +70℃
Fresnel Lens Size	Diameter 23mm(default)
Detection Distance	4~8m(adjustable)

ZRD-09 PIR Sensor Module For Human Body Induction Pyroelectric infrared 0
