AGP3200H00 MEMS Digital Display Resistive Pirani Vacuum Gauge AGP3 Series, Replacing PSG500 for Vacuum Packaging

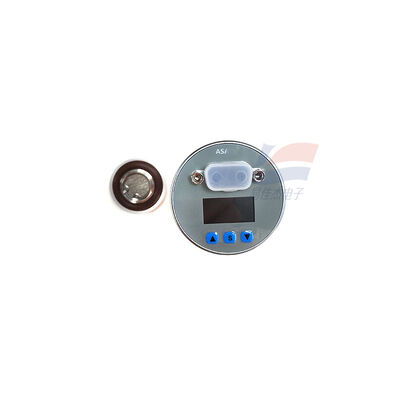

Large Image : AGP3200H00 MEMS Digital Display Resistive Pirani Vacuum Gauge AGP3 Series, Replacing PSG500 for Vacuum Packaging

Product Details:

Place of Origin:	CN
Model Number:	AGP3200H00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

AGP3200H00 MEMS Digital Display Resistive Pirani Vacuum Gauge AGP3 Series, Replacing PSG500 for Vacuum Packaging

Description

Output Signal:	0~10 V DC	Supply Voltage:	12~24 V DC
Working Current:	≤ 30 MA	Accuracy:	±10% Of Reading
Repeatability:	≤ ±2% F.S.	Response Time:	≤ 500 Ms
Highlight:	MEMS digital vacuum gauge , resistive Pirani vacuum sensor , AGP3 series vacuum packaging gauge

AGP3200H00 MEMS Digital Display Resistive Pirani Vacuum Gauge AGP3 Series, Replacing PSG500 for Vacuum Packaging

Features:

Based on Pirani thermal conductivity principle for stable measurement of non-condensable gases (air, N2, Ar, etc.).
Wide measurement range covering rough to medium vacuum; 0-10 V linear analog output for easy PLC/DCS integration.
Built-in temperature compensation ensures accuracy across 0-50℃; low power consumption (≤30 mA @24V).
Robust stainless steel probe with KF16 flange; resistant to dust and mild chemical vapors.
Simple calibration via zero/span adjustment; long-term stability with minimal drift.

Applications:

Vacuum packaging, vacuum coating, semiconductor processing, and vacuum drying systems.
Leak detection in industrial vacuum lines and vacuum furnace monitoring.
Laboratory vacuum equipment and HVAC refrigeration system vacuum testing.

Model	AGP3200H00 (Pirani Vacuum Gauge)
Output Signal	0~10 V DC (linear with pressure logarithm)
Supply Voltage	12~24 V DC
Working Current	≤ 30 mA
Accuracy	±10% of reading (at 1 mbar)
Repeatability	≤ ±2% F.S.
Response Time	≤ 500 ms (90% response)
Operating Temp.	0~50℃
Storage Temp.	-20~70℃
Protection Rating	IP40 (probe); IP20 (electronics)
Pressure Connection	KF16 flange (stainless steel)

AGP3200H00 MEMS Digital Display Resistive Pirani Vacuum Gauge AGP3 Series, Replacing PSG500 for Vacuum Packaging 0
