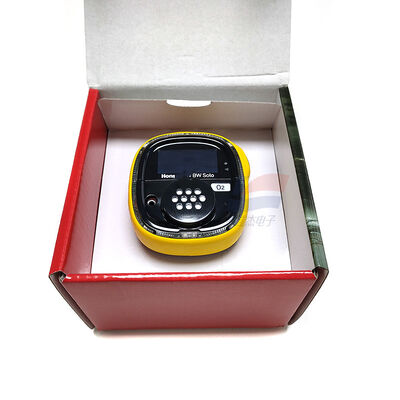

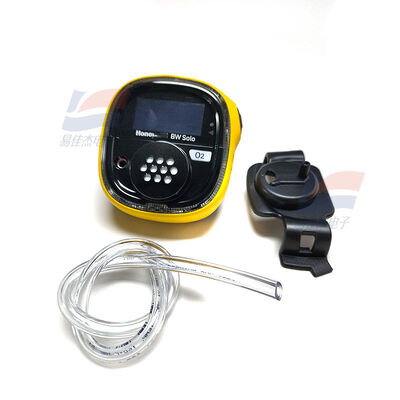

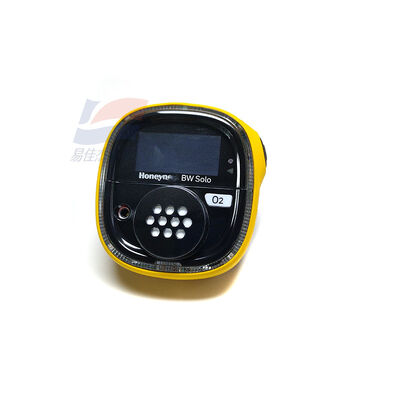

BWS2-X-Y-CN Portable Single Gas Detector Designed for Oxygen Monitoring Confined Space Entry Safety

Large Image : BWS2-X-Y-CN Portable Single Gas Detector Designed for Oxygen Monitoring Confined Space Entry Safety

Product Details:

Place of Origin:	USA
Model Number:	BWS2-X-Y-CN

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

BWS2-X-Y-CN Portable Single Gas Detector Designed for Oxygen Monitoring Confined Space Entry Safety

Description

Measurement Range:	0~30% VOL	Resolution:	0.1% VOL
Alarm Thresholds:	Low: 19.5% VOL; High: 23.5% VOL	Sensor Type:	1 Series Electrochemical
Response Time (T90):	< 15 Seconds	Operating Temp:	-40°C To +50°C
Highlight:	portable oxygen gas detector , confined space gas monitor , single gas analyzer with warranty

BWS2-X-Y-CN Portable Single Gas Detector Designed for Oxygen Monitoring Confined Space Entry Safety

Key Features:

Single button operation for easy use
Tool less maintenance: Replace sensor/filter/battery without disassembly
High reliability 1 Series O2 sensor (3 year warranty, 5 year expected life)
Multi language display (supports Chinese)
Data logging: 6 month rolling storage (5 second intervals)
Triple alarm: Audible (95 dB), visual, and vibration
Compact & rugged: IP66/IP68 for harsh industrial environments
Wireless BLE: Real time data to Safety Suite software

Typical Applications:

Confined space entry safety
Industrial plant & facility safety
Mining & construction safety
Fire & emergency response
General workplace O2 monitoring

Target Gas	Oxygen (O2)
Measurement Range	0 ~30% VOL
Resolution	0.1% VOL
Alarm Thresholds	Low: 19.5% VOL; High: 23.5% VOL
Sensor Type	1 Series Electrochemical
Response Time (T90)	< 15 seconds
Operating Temp	-40°C to +50°C
Protection Rating	IP66 / IP68
Battery	3V CR123A lithium; 12 month life (O2 sensor: 6 months)
Connectivity	Bluetooth Low Energy (BLE)
Weight	< 116 g
Certifications	Ex ia IIC T4 Ga; IP66/68; ABS; EMC

BWS2-X-Y-CN Portable Single Gas Detector Designed for Oxygen Monitoring Confined Space Entry Safety 0
