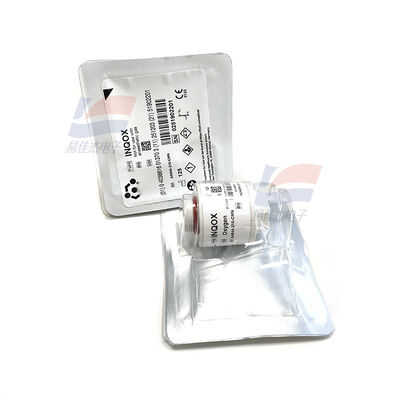

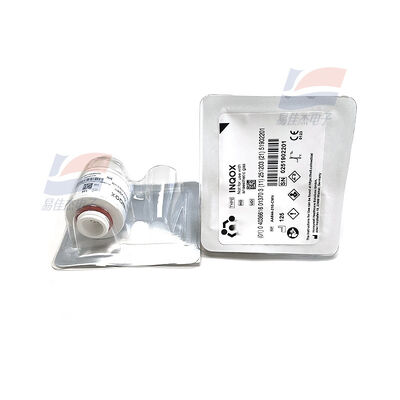

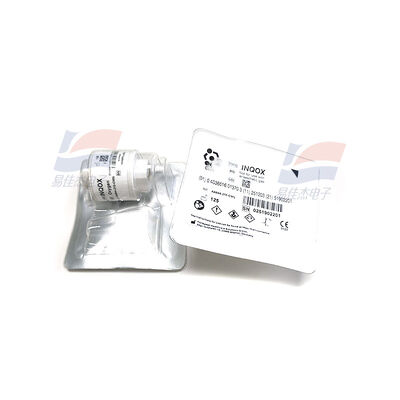

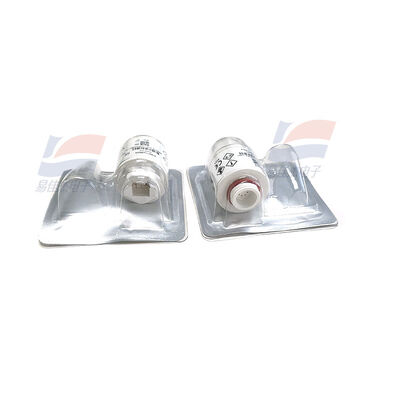

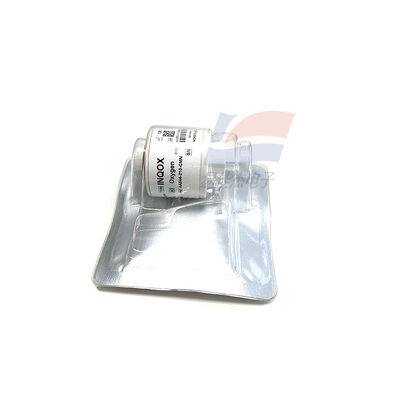

INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios

       INQOX AA844-210-CMN Medical-grade Electrochemical Oxygen Sensors Are Used in Respiratory and Neonatal Monitoring Scenarios

Feature:

• Partial pressure measurement eliminates barometric pressure compensation, ensuring accuracy across altitudes.
• Linear output (0–100 vol% O2) for direct microcontroller integration without linearization.
• Rapid response (≤10 sec T90) for real-time patient monitoring in critical care.
• Wide operating temperature (-20 to 50 °C) and pressure (0.5–2.0 bar) ranges for diverse medical environments.
• RoHS compliant with 13-month warranty for medical device reliability.
• Compact M16 mechanical interface with Molex connector for tool-free installation and replacement.
• Low cross-sensitivity to common medical gases (per ISO 80601-2-55) minimizes false readings.
• Designed for neonatal incubators and ventilators; not for use with anesthesia gases.

Purpose:

• Neonatal Incubators: Continuous O2 monitoring for preterm infants, ensuring stable oxygenation.
• Ventilators: Measuring inspiratory/expiratory O2 concentration in critical care and home settings.
• Respiratory Monitors: Multi-parameter patient monitoring systems in emergency and transport scenarios.
• Oxygen Concentrators: Feedback control for precise O2 delivery in home healthcare equipment.
• Hyperbaric Chambers: Pressure-compensated O2 measurement in high-pressure medical environments.
• Pulmonary Function Testers: Calibration and gas analysis in diagnostic equipment.
