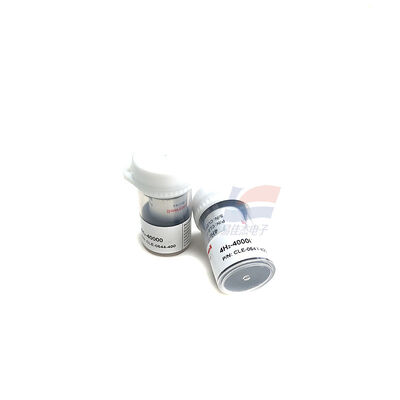

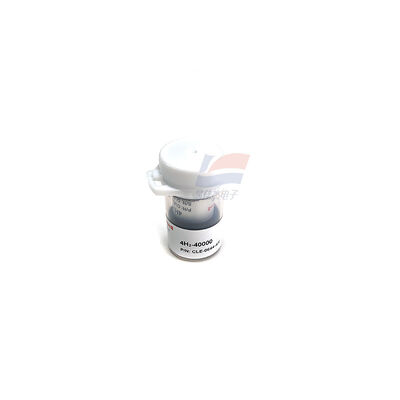

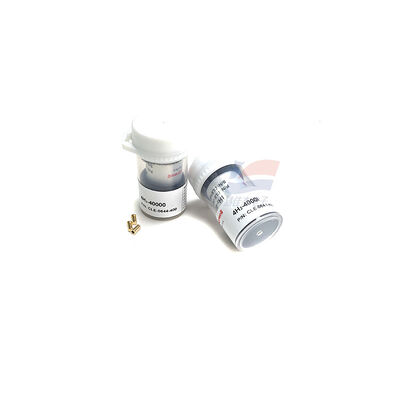

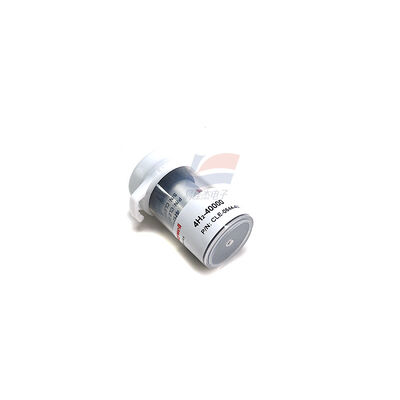

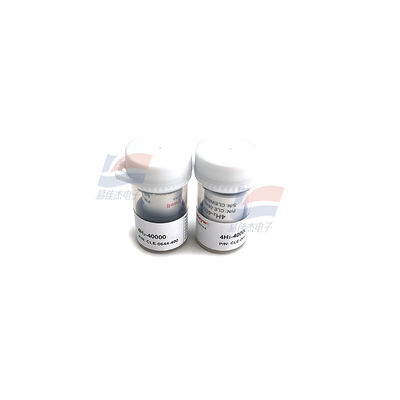

4H2-40000 CLE-0644-400 Hydrogen Gas H2 Sensor 4 Series Plug In Three Electrode Electrochemistry

Large Image : 4H2-40000 CLE-0644-400 Hydrogen Gas H2 Sensor 4 Series Plug In Three Electrode Electrochemistry

Product Details:

Place of Origin:	USA
Brand Name:	YJJ
Model Number:	4H2-40000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000PCS/Month

Contact Now

4H2-40000 CLE-0644-400 Hydrogen Gas H2 Sensor 4 Series Plug In Three Electrode Electrochemistry

Description

Part Number:

CLE-0644-400

Nominal Range:

0 To 40000 Ppm

Sensitivity:

0.007± 0.002 UA/ppm

Baseline ( 20 OC ):

< ± 0.2 UA

Highlight:

hydrogen gas H2 sensor

plug-in electrochemical gas sensor

three-electrode hydrogen sensor

4H2-40000 CLE-0644-400 Hydrogen Gas H2 Sensor 4 Series Plug In Three Electrode Electrochemistry

Specicifation:

Baseline drift (-20℃~50℃)	Equivalent < 20 ppm H₂
Resolution	80 ppm
Linearity	Full-scale linearity
Long-term stability	< 2% signal value/month
Bias	0 mV (no external bias required)

Environmental parameters

Operating temperature	-20°C to +50°C
Operating humidity	15%–90% RH (non-condensing)
Operating pressure	91–111 kPa (Standard Atmosphere ±10%)
Storage temperature	0°C–20°C (sealed packaging)
Shelf life	6 months (original sealed packaging)
Working life	2 years (in clean air)
Warranty period	12 months (from delivery)

4H2-40000 CLE-0644-400 Hydrogen Gas H2 Sensor 4 Series Plug In Three Electrode Electrochemistry 0
