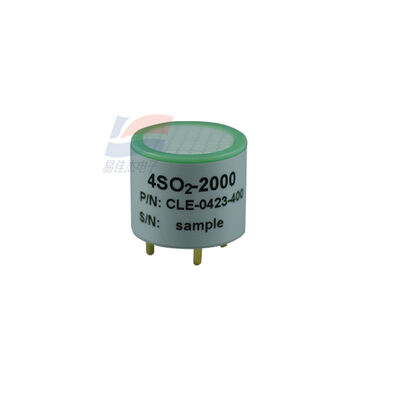

YJJ 4SO2-2000 CLE-0423-400 Electrochemical Sulfur Dioxide SO2 Sensor for Environmental Monitoring

Product Description:

YJJ 4SO2-2000 CLE-0423-400 Electrochemical Sulfur Dioxide (SO2) Sensor for Environmental Monitoring

Features:

4SO2-2000 (CLE-0423-400) Three-electrode Electrochemical Sulfur Dioxide (SO₂) Sensor, specially designed for industrial and environmental monitoring with a range of 0–2000 ppm.

I. Core Parameters (Standard Specifications) Table

Parameter Item Value

Model 4SO2-2000 / CLE-0423-400

Detected Gas Sulfur Dioxide (SO₂)

Measurement Range 0–2000 ppm

Maximum Overload 4000 ppm

Sensitivity 0.020 ± 0.008 μA/ppm

Baseline (20℃) < ±0.4 μA

Baseline Drift 0–4 ppm SO₂ Equivalent (-20~40℃)

Resolution 5 ppm

Response Time (T90) ≤ 60 seconds

Linearity Full Scale Linearity

Long-Term Drift < 2% Signal / Month

Operating Temperature -20℃ ～ +50℃

Operating Humidity 15%–90% RH (No Condensation)

Operating Pressure Air Pressure ±10% (90–110 kPa)

Offset Voltage 0 mV

Expected Lifespan Airborne 2 Years

Warranty Period 12 Months After Shipment

Size / Weight φ20.2 mm, Approximately 5 g

II. Working Principle

It adopts the three-electrode electrochemical principle: SO₂ undergoes oxidation/reduction reactions at the working electrode, generating a weak current proportional to the concentration, which is amplified by the circuit and output as a concentration signal; no heating is required, and the power consumption is extremely low, making it suitable for portable and fixed equipment.

III. Typical Applications

Industrial Safety Monitoring: SO₂ leakage detection and alarm in chemical plants, metallurgy, thermal power, petrochemicals, etc.

Environmental Monitoring: Continuous monitoring of SO₂ concentration in flue gas emissions, waste gas treatment, atmospheric environment.

Fixed / Portable Instruments: Gas detectors, multi-parameter analyzers, flue gas analyzers, air quality monitoring stations.

Special Scenarios: Laboratory, storage, ships, mines, etc. for safety detection in restricted spaces.

IV. Selection and Usage Tips

Compatible with the 4-series industrial standard size and most gas detection instrument bases.

Recommended to connect using a PCB socket, and prohibit direct welding of pins at high temperatures.

Suitable for medium to high concentration SO₂ scenarios; for low concentrations (below ppm level), recommend models such as 4SO2-20 with smaller measurement ranges.
