CH2O/M-10 Electrochemical Formaldehyde (CH2O) Sensor for Portable Hand-held Gas Detectors Indoor air Quality Monitors

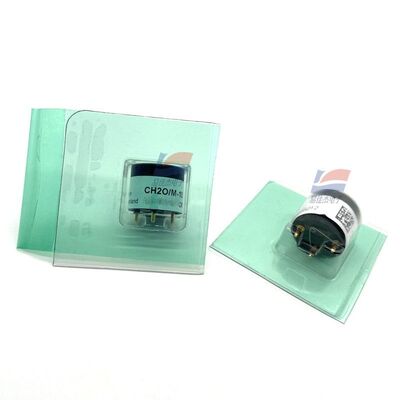

Large Image : CH2O/M-10 Electrochemical Formaldehyde (CH2O) Sensor for Portable Hand-held Gas Detectors Indoor air Quality Monitors

Product Details:

Place of Origin:	Switzerland
Model Number:	CH2O/M-10

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

CH2O/M-10 Electrochemical Formaldehyde (CH2O) Sensor for Portable Hand-held Gas Detectors Indoor air Quality Monitors

Description

Target Gas:	Formaldehyde (CH2O)	Measurement Range:	0 ~ 10 Ppm
Maximum Overload:	30 Ppm	Sensitivity:	4600 ± 1200 NA/ppm
Resolution:	0.01 Ppm	Response Time (T90):	< 40 Seconds
Highlight:	electrochemical formaldehyde sensor , portable gas detector sensor , indoor air quality monitor sensor

CH2O/M-10 Electrochemical Formaldehyde (CH2O) Sensor for Portable Hand-held Gas Detectors Indoor air Quality Monitors

General Description:

Highly sensitive, miniature electrochemical sensor for detecting formaldehyde (HCHO/CH2O) gas. Designed for portable gas detectors and indoor air quality monitoring.

Applications:

Portable hand-held gas detectors
Indoor air quality monitors
Industrial safety and emissions monitoring
Environmental testing equipment

Target Gas	Formaldehyde (CH2O)
Measurement Range	0 ~ 10 ppm
Maximum Overload	30 ppm
Sensitivity	4600 ± 1200 nA/ppm
Resolution	0.01 ppm
Response Time (T90)	< 40 seconds
Linearity	Linear
Long-term Drift	< 2% signal/month
Operating Temperature	-20°C to +50°C
Operating Humidity	15 ~ 90% RH (non-condensing)
Operating Pressure	800 ~ 1200 mbar
Recommended Load Resistor	10 Ohms
Bias Voltage	None required
Service Life	2 years in air
Storage Temperature	5°C to 20°C
Weight	5.4 g
Dimensions	Ø20 mm x 16.6 mm (4-Series standard)

CH2O/M-10 Electrochemical Formaldehyde (CH2O) Sensor for Portable Hand-held Gas Detectors Indoor air Quality Monitors 0
