OXY-FLEX-1-H Zirconia O2 Sensors OXY-Flex Oxygen Analyser for Boiler Combustion Optimization Welding Gas Purity Check

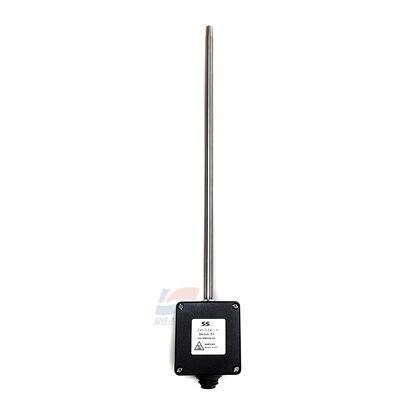

Large Image : OXY-FLEX-1-H Zirconia O2 Sensors OXY-Flex Oxygen Analyser for Boiler Combustion Optimization Welding Gas Purity Check

Product Details:

Place of Origin:	UK
Model Number:	OXY-FLEX-1-H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

OXY-FLEX-1-H Zirconia O2 Sensors OXY-Flex Oxygen Analyser for Boiler Combustion Optimization Welding Gas Purity Check

Description

Sensor Type:	Zirconium Dioxide (ZrO2) MEMS	Response Time (T90):	<5 S
Output Signals:	4~20 MA	Probe Length:	400 Mm
Gas Temperature Range:	-100°C To +400°C	Flow Rate:	0~10 M/s
Highlight:	Zirconia O2 sensor for boilers , Oxygen analyzer for welding gas , Combustion optimization gas sensor

OXY-FLEX-1-H Zirconia O2 Sensors OXY-Flex Oxygen Analyser for Boiler Combustion Optimization Welding Gas Purity Check

Key Features:

Reference Gas Free Design: Eliminates external reference gas cylinders, reducing maintenance and cost.
Dual Range Configurable: Switch between 25% (combustion) and 100% (inert gas) ranges via software.
High Temp Resilience: Withstands -100°C to +400°C gas temperatures for boiler stacks/exhaust ducts.
Dual Output Options: 4-20 mA for PLC integration, RS232 for data logging/remote config.
Built in Fault Detection: Heartbeat signal for real time sensor health monitoring.
IP66 Enclosure: Dust/waterproof housing for harsh industrial environments.

Measurement Range	0.1-25% O2 or 0.1-100% O2
Accuracy	±0.1% O2 (0-25% range); ±0.5% O2 (0-100% range)
Response Time (T90)	<5 s
Output Signals	4-20 mA (linear), 0-10 VDC, RS232 (0.01% O2 resolution)
Probe Length	400 mm
Gas Temperature Range	-100°C to +400°C
Flow Rate	0-10 m/s
Supply Voltage	24 VDC (18-30 VDC)
Operating Pressure	Atmospheric ±10%
Calibration	Fresh air (20.7% O2) or known gas
MTBF	>50,000 hours

OXY-FLEX-1-H Zirconia O2 Sensors OXY-Flex Oxygen Analyser for Boiler Combustion Optimization Welding Gas Purity Check 0
