MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors

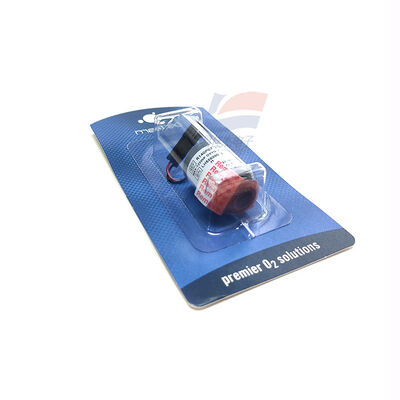

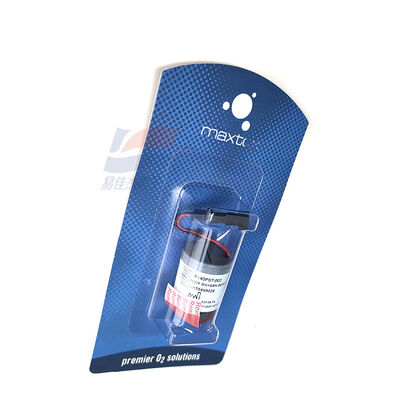

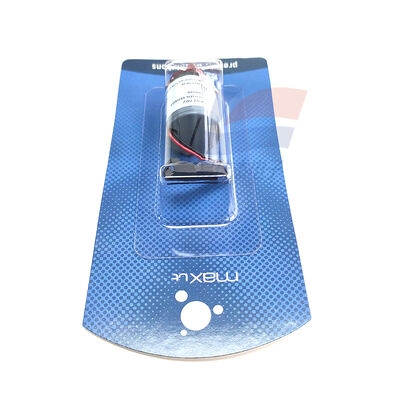

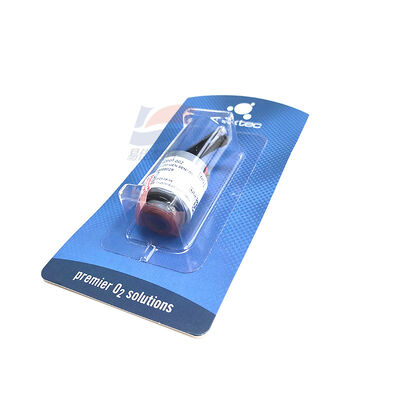

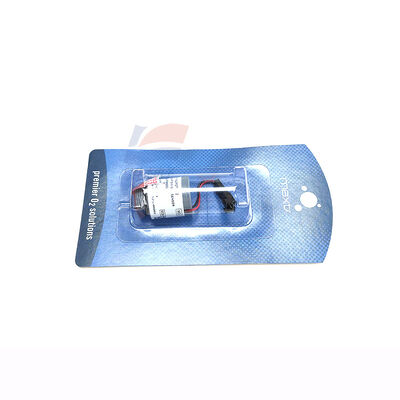

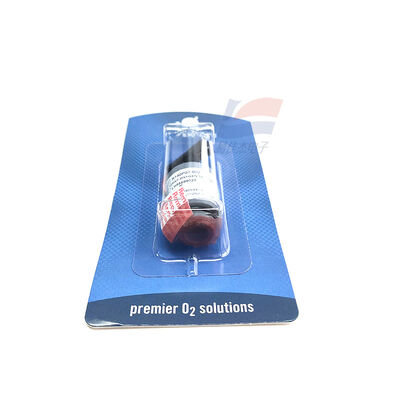

Large Image : MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors

Product Details:

Place of Origin:	USA
Model Number:	MAX-125WF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors

Description

Accuracy:	±1.0% Vol	Response Time (T90):	≤10 S
Zero Drift:	≤±0.5 % Vol/year	Operating Temperature:	5 ~ 45 °C
Operating Humidity:	15 ~ 90 % RH	Operating Pressure:	86 ~ 106 KPa
Highlight:	MAX-125WF medical oxygen sensor , oxygen sensor for concentrators , medical gas analyzer sensor

MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors

Applications :

Medical devices:

Anesthesia machines
Oxygen concentrators
Ventilators
Patient monitors

Industrial safety:

Oxygen deficiency monitors
Breathing apparatus
Glove boxes & inert gas systems

Environmental & lab:

Air quality testing
Incubators
Fermentation monitoring

Parameter	Specification	Unit	Test Condition
Detection Gas	Oxygen (O2)	-	Medical grade gas mixture
Measurement Range	0 ~ 100	% Vol	Standard atmospheric pressure
Output Signal	Linear analog output (current/voltage)	mA/mV	25°C, 1atm
Accuracy	±1.0	% Vol	At 21% O2, 25°C
Response Time (T90)	≤10	s	Standard test conditions
Zero Drift	≤±0.5	% Vol/year	Long-term operation
Sensitivity Drift	≤±1.0	% Vol/year	Long-term operation
Operating Temperature	5 ~ 45	°C	Full measurement range
Operating Humidity	15 ~ 90	% RH	Non-condensing
Operating Pressure	86 ~ 106	kPa	Standard atmospheric pressure
Storage Temperature	0 ~ 30	°C	Sealed packaging
Expected Lifetime	≥2	years	Continuous operation at 25°C
Output Load Resistance	Customizable	Ω	Matching equipment requirements
Gas Flow Rate	50 ~ 500	sccm	Optimal detection flow

MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors 0
