ME3-CH2O Electrochemical Gas Sensor CH2O Dormaldehyde Low Consumption

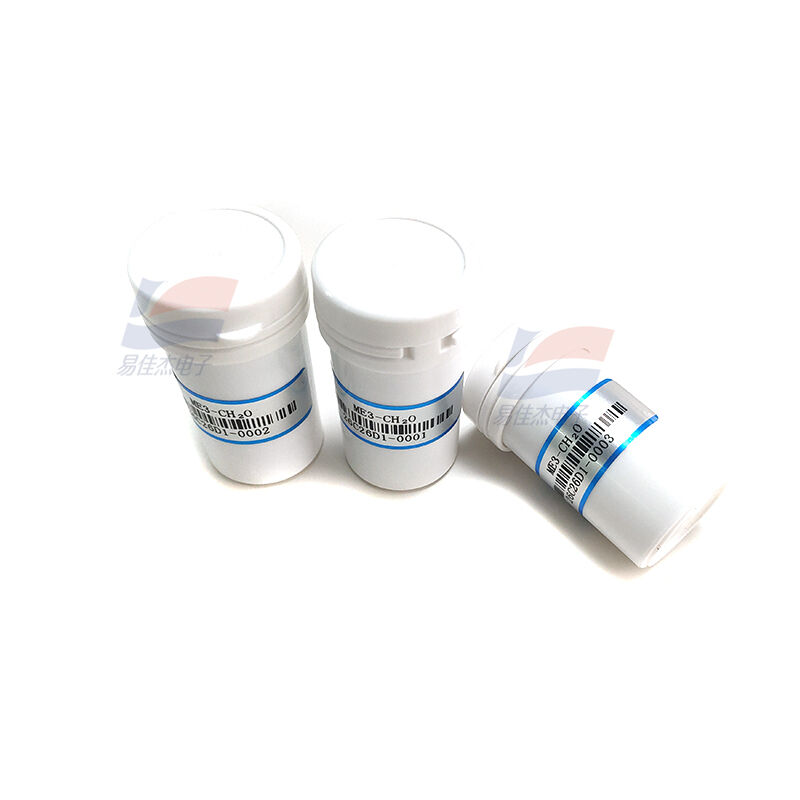

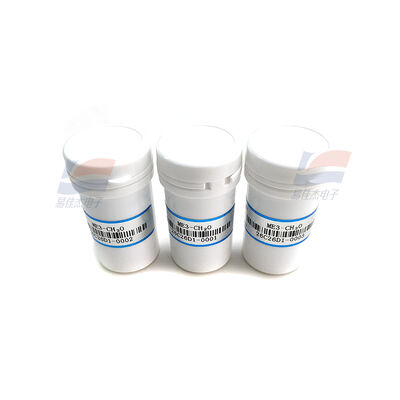

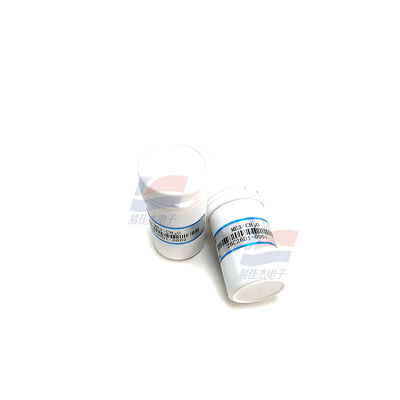

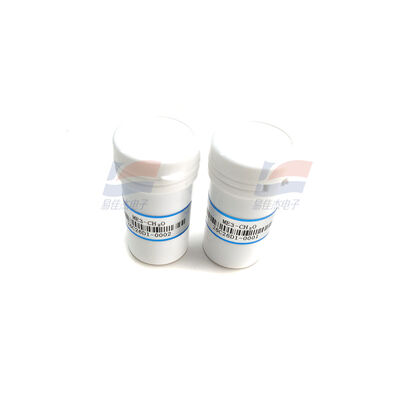

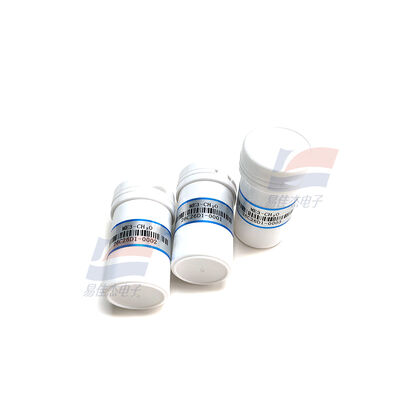

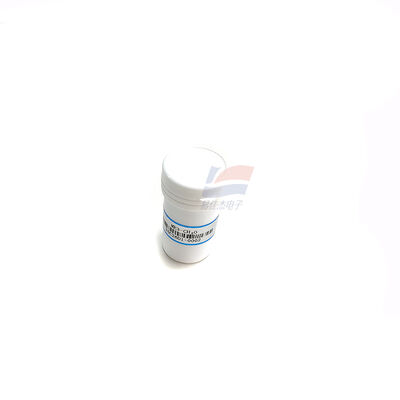

Large Image : ME3-CH2O Electrochemical Gas Sensor CH2O Dormaldehyde Low Consumption

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	ME3-CH2O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

ME3-CH2O Electrochemical Gas Sensor CH2O Dormaldehyde Low Consumption

Description

Detection Gas:

CH2O

Measurement Range:

0～10ppm

Max Detecting Concentration:

100ppm

Sensitivity:

（11.8±6）µA/ppm

Highlight:

electrochemical formaldehyde gas sensor

low consumption CH2O sensor

ME3-CH2O formaldehyde detector

ME3-CH2O Electrochemical Gas Sensor CH2O Dormaldehyde Low Consumption

ME3-CH2O electrochemical sensor detect gas concentration by measuring current based on the electrochemical principle, which utilizes the electrochemical oxidation process of target gas on the working electrode inside the electrolytic cell, the current produced in electrochemical reaction of the target gas are in direct proportion with its concentration while following Faraday law, then concentration of the gas could be get by measuring value of current.

1. Features
* Low consumption
* High precision
* High sensitivity
* Wide linear range
* Good anti-interference ability
* Excellent repeatability and stability
2. Applications
Widely used in industrial and environmental fields

Specification:

Resolution ratio	0.1ppm
Response time(T90)	≤90S
Bias voltage	300mV
Load resistance(recommended)	300Ω
Repeatability	＜2﹪output value
Stability(／month)	＜2﹪
Output Linearity	Linear
Zero drift(-20℃～40℃)	-0.03ppm～0.03ppm
Storage temperature	-20℃～50℃
Storage Humidity	15﹪～90﹪RH
Pressure range Standard atmosphere	±10%
Anticipated using life	2 years(in air)

ME3-CH2O Electrochemical Gas Sensor CH2O Dormaldehyde Low Consumption 0
