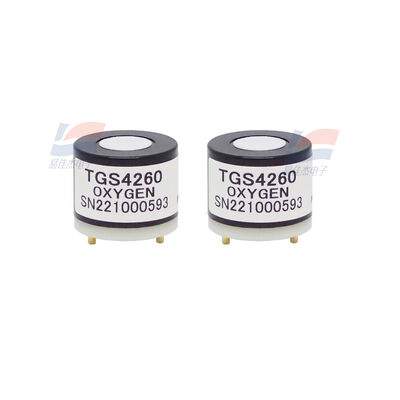

TGS4260 Oxygen Gas Sensor Potentiostatic Electrolysis Type Three Electrode

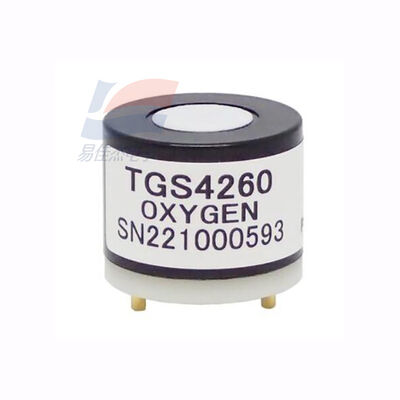

Large Image : TGS4260 Oxygen Gas Sensor Potentiostatic Electrolysis Type Three Electrode

Product Details:

Place of Origin:	Japan
Brand Name:	Figaro
Model Number:	TGS4260

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

TGS4260 Oxygen Gas Sensor Potentiostatic Electrolysis Type Three Electrode

Description

Detected Gas:

Oxygen (O₂)

Detection Principle:

Constant Potential Electrolytic

Measurement Range:

0 – 25 Vol.%

Overload:

Max. 30 Vol.%

Highlight:

oxygen gas sensor potentiostatic electrolysis

three electrode oxygen sensor

TGS4260 gas sensor with warranty

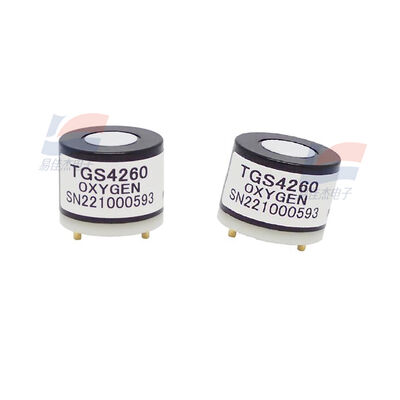

TGS4260 Oxygen Gas Sensor Potentiostatic Electrolysis Type Three Electrode

Constant-Potential Electrolytic, Lead-Free Oxygen (O₂) Sensor — Industry-Standard 20mm Package, Long Lifespan, Linear Output

Features and Applications
1. Lead-free design, RoHS compliant
2. 20mm industry-standard size
3. Linear output, rapid response, high selectivity
4. Shock-resistant, long lifespan

Applications: Portable/fixed oxygen detectors, multi-gas alarms, industrial oxygen concentration monitoring

Specification:

Sensitivity	Approx. 0.4 mA/vol.% (@ 20.9% O₂, 20 Ω load)
Response Time (T90)	< 8 seconds
Resolution	0.1 vol.%
Repeatability	±2%
Bias Voltage	-600 mV ±10 mV
Recommended Load Resistance	20 Ω

Operating Temperature:

Operating Humidity	15% – 85% RH (non-condensing)
Operating Pressure	100 kPa ±20 kPa
Dimensions	Φ20.4 mm × 20.6 mm (including pins)
Weight	Approx. 6.0 g
Lifespan	> 5 years (in air)
Storage Temperature	5°C – 35°C
Warm-up Time	≥ 3 hours

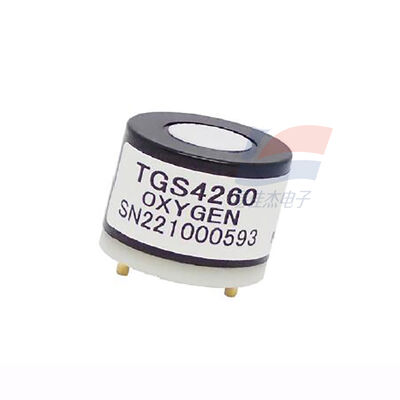

TGS4260 Oxygen Gas Sensor Potentiostatic Electrolysis Type Three Electrode 0
