ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector

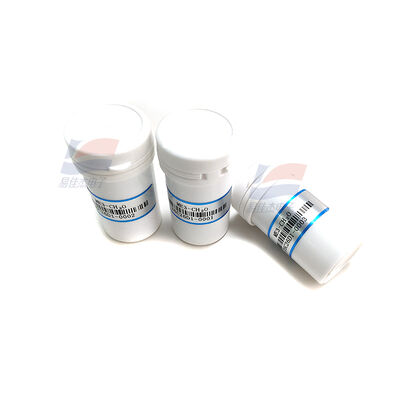

Large Image : ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector

Product Details:

Place of Origin:	CN
Model Number:	ME3-CH2O

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector

Description

Target Gas:	Formaldehyde	Measurement Range:	0 ~ 10 Ppm
Maximum Overload:	100 Ppm	Sensitivity:	(11.8 ± 6)
Resolution:	0.1 Ppm	Response Time (T90):	≤ 90 Seconds
Highlight:	formaldehyde electrochemical gas sensor , indoor air concentration detector , ME3-CH2O gas sensor

ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector

Features:

Electrochemical principle, current output proportional to concentrationWinsen Electronics
Low power consumption, high precision & high sensitivityWinsen Electronics
Wide linear range, good anti‑interferenceWinsen Electronics
Excellent repeatability & long‑term stability

Applications:

Industrial safety,

environmental monitoring,

indoor air quality,

formaldehyde detection instruments,

hygiene & occupational safety

Target Gas	Formaldehyde (CH2O, HCHO)
Measurement Range	0 ~ 10 ppm
Maximum Overload	100 ppm
Sensitivity	(11.8 ± 6) µA/ppm
Resolution	0.1 ppm
Response Time (T90)	≤ 90 seconds
Bias Voltage	300 mV
Recommended Load Resistance	300 Ω
Repeatability	< 2% of output value
Long-term Drift	< 2% per month
Operating Temperature	-20°C to +50°C
Operating Humidity	15% ~ 90% RH (non-condensing)
Service Life	2 years (in ambient air)
Package	Standard 4-series (Ø20.3 x 16.6 mm)

ME3-CH2O Formaldehyde Electrochemical Gas Sensor Indoor Environmental air Concentration Detector 0
