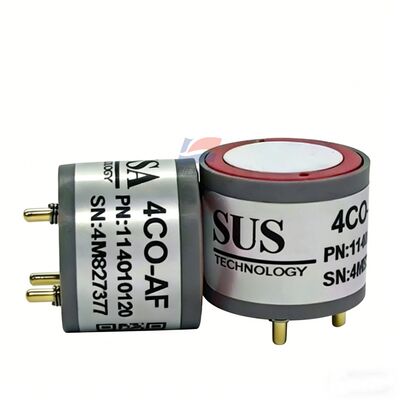

4CO-AF Electrochemical Carbon Monoxide (CO) Gas Sensor for Most Life Safety Detectors Including Industrial Safety Monitors

Certification
China ShenzhenYijiajie Electronic Co., Ltd. certification
China ShenzhenYijiajie Electronic Co., Ltd. certification
I'm Online Chat Now

4CO-AF Electrochemical Carbon Monoxide (CO) Gas Sensor for Most Life Safety Detectors Including Industrial Safety Monitors

4CO-AF Electrochemical Carbon Monoxide (CO) Gas Sensor for Most Life Safety Detectors Including Industrial Safety Monitors
4CO-AF Electrochemical Carbon Monoxide (CO) Gas Sensor for Most Life Safety Detectors Including Industrial Safety Monitors

Large Image :  4CO-AF Electrochemical Carbon Monoxide (CO) Gas Sensor for Most Life Safety Detectors Including Industrial Safety Monitors

Product Details:
Place of Origin: CN
Model Number: 4CO-AF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Paper box
Delivery Time: 3-5work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs

4CO-AF Electrochemical Carbon Monoxide (CO) Gas Sensor for Most Life Safety Detectors Including Industrial Safety Monitors

Description
Measuring Range: 0 - 100 Ppm Overload Range: 200 Ppm
Baseline Current: < ±0.2 μA Sensitivity: 200 ± 50 NA/ppm
Resolution: 0.5 Ppm Weight: 5g
Highlight:

Electrochemical CO gas sensor

,

Carbon monoxide detector sensor

,

Industrial safety CO sensor



          4CO-AF Electrochemical Carbon Monoxide (CO) Gas Sensor for Most Life Safety Detectors Including Industrial Safety Monitors





Product Features:


  • High sensitivity and stable output for low-concentration CO detection
  • Excellent anti-interference performance, reducing false alarms
  • Wide operating temperature range, suitable for harsh environments
  • Low baseline drift, long service life and high reliability
  • Three-electrode electrochemical structure, fast response and good linearity
  • No bias voltage required, easy to integrate into detection circuits
  • Compact size, lightweight, compatible with standard gas detector modules
  • Good repeatability and long-term stability, low maintenance cost


Applications:


  • Residential and commercial carbon monoxide alarm systems
  • Industrial safety monitoring and toxic gas detection equipment
  • Vehicle exhaust and indoor air quality monitoring devices
  • Portable gas detectors and personal safety alarms
  • Ventilation control and environmental monitoring systems
  • Mining, chemical, petroleum and other hazardous site monitoring
  • Fire alarm and building safety protection equipment



Sensor Type Electrochemical, three electrode
Target Gas Carbon Monoxide (CO)
Measuring Range 0~100 ppm
Overload Limit 200 ppm
Sensitivity 200 ± 50 nA/ppm
Response Time (T90) < 15 seconds
Baseline Current < ±0.2 μA
Zero Drift (-20°C to +50°C) -1 to +10 ppm
Repeatability < ±2% signal per month
Resolution 0.5 ppm
Bias Voltage 0 mV
Recommended Load Resistance 5~30 Ω



4CO-AF Electrochemical Carbon Monoxide (CO) Gas Sensor for Most Life Safety Detectors Including Industrial Safety Monitors 0
