MC113C MC113 Catalytic Combustion Gas Sensor for Coal Mine Explosion-proof MJC4/2.8J Methane Gas Liquefied Gas Detection

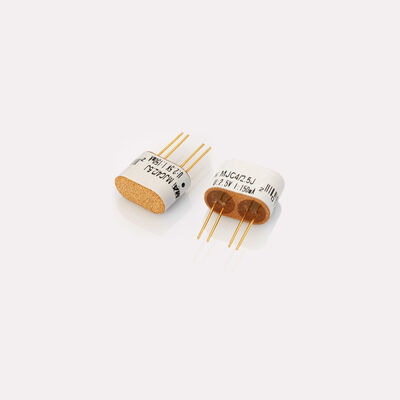

Large Image : MC113C MC113 Catalytic Combustion Gas Sensor for Coal Mine Explosion-proof MJC4/2.8J Methane Gas Liquefied Gas Detection

Product Details:

Place of Origin:	CN
Model Number:	MC113C MC113 MJC4/2.8J

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

MC113C MC113 Catalytic Combustion Gas Sensor for Coal Mine Explosion-proof MJC4/2.8J Methane Gas Liquefied Gas Detection

Description

Measuring Range (% LEL):

0~100

Response Time (90%):

≤10s

Recovery Time (90%):

≤30s

Operating Environment:

-40-+70℃ Less Than 95%RH

Highlight:

MJC4 catalytic combustion gas sensor

explosion-proof methane gas detector

coal mine liquefied gas sensor

MC113C MC113 Catalytic Combustion Gas Sensor for Coal Mine Explosion-proof MJC4/2.8J Methane Gas Liquefied Gas Detection

Product details:

MJC4/2.8 J type catalytic element work, according to the principle of catalytic combustion effect consists of detecting element and compensating element matching bridge two arm, meet the combustible gas detecting element resistance increases, the output voltage change bridge road, the variable voltage increases with the increase of gas concentration and become direct ratio, compensating element and ratio, temperature and humidity compensation effect.

Sensor characteristics:

The output voltage of the bridge
Quick response time
It has good repeatability and selectivity
The components work stably and reliably
Excellent resistance to H2S and organosilicon poisoning

application:

The black and white components can be used in the industrial field of natural gas, liquefied gas, coal gas, alkanes and other flammable gases and gasoline, alcohol, ketone, benzene and other organic solvent vapor concentration detection.
Flammable gas leak alarm; Flammable gas detector; Gas densitometer.

Measuring range (% LEL)	0~100
Response time (90%)	≤10s
Recovery time (90%)	≤30s
Operating environment	-40-+70℃ less than 95%RH
Storage environment	-20 - +70℃ below 95%RH
MJC4/2.8J MC113	2.8J/L 90±10mA, 19×9.5×14mm
MJC4/2.8J MC113C	2.8J/L 95±10mA 14×8×10mm

MC113C MC113 Catalytic Combustion Gas Sensor for Coal Mine Explosion-proof MJC4/2.8J Methane Gas Liquefied Gas Detection 0
