MC114 MC114C Catalytic Combustion Gas Sensor Methane Gas Industrial and Mining Gas Liquefied Gas Explosion-proof MJC4/2.5J

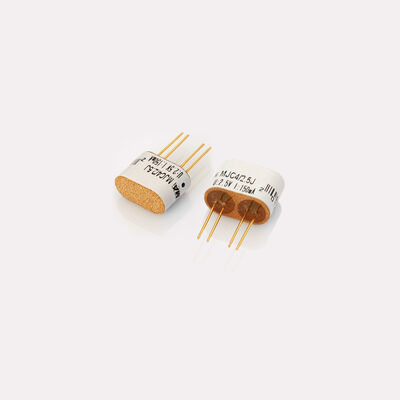

Large Image : MC114 MC114C Catalytic Combustion Gas Sensor Methane Gas Industrial and Mining Gas Liquefied Gas Explosion-proof MJC4/2.5J

Product Details:

Place of Origin:	CN
Model Number:	MC114 MC114C MJC4/2.5J

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

MC114 MC114C Catalytic Combustion Gas Sensor Methane Gas Industrial and Mining Gas Liquefied Gas Explosion-proof MJC4/2.5J

Description

Measuring Range (% LEL):

0~100

Response Time (90%):

≤10s

Recovery Time (90%):

≤30s

Operating Environment:

-40~+70℃ Less Than 95%RH

Highlight:

MJC4 catalytic combustion gas sensor

explosion-proof methane gas sensor

industrial liquefied gas detector

MC114 MC114C Catalytic Combustion Gas Sensor Methane Gas Industrial and Mining Gas Liquefied Gas Explosion-proof MJC4/2.5J

Product details:

MJC4/2.5 J type catalytic element work, according to the principle of catalytic combustion effect consists of detecting element and compensating element matching bridge two arm, meet the combustible gas detecting element resistance increases, the output voltage change bridge road, the voltage increases with the increase of gas concentration and become direct ratio, variable compensation components and ratio, temperature and humidity compensation effect.

Sensor characteristics:

Quick response time
It has good repeatability and selectivity
The components work stably and reliably
Resistance to H2S poisoning

application:

Concentration test of natural gas, liquefied gas, coal gas, alkanes and organic solvents such as gasoline, alcohol, ketone and benzene in industrial field.
Combustible gas leak alarm combustible gas detector gas concentration meter.

Measuring range (% LEL)	0~100
Response time (90%)	≤10s
Recovery time (90%)	≤30s
Operating environment	-40-+70℃ less than 95%RH
Storage environment	-20 -- +70℃ below 95%RH
Dimensions (mm)	MJC4/2.5J:9.5×14×19 MJC4/2.5J: 8×10×14
MC112	3.0J/L 105±10 mA 19×9.5×14mm
MC112C	3.0J/L 100±10 mA 14×8×10mm
MC112D	3.0J/L 150±10mA 19×9.5×14mm
MC113	2.8J/L 90±10mA, 19×9.5×14mm
MC113C	2.8J/L 95±10mA 14×8×10mm
MC114	2.5J/L, 150±10mA , 19×9.5×14mm
MC114C	2.5J/L, 90±10mA, 14×8×10mm

MC114 MC114C Catalytic Combustion Gas Sensor Methane Gas Industrial and Mining Gas Liquefied Gas Explosion-proof MJC4/2.5J 0
