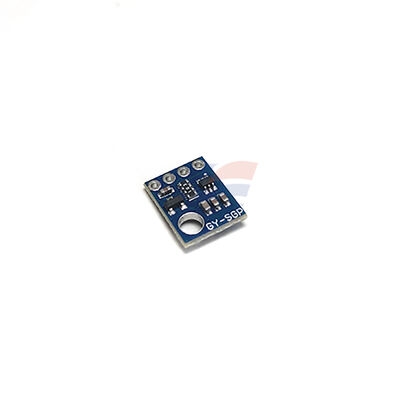

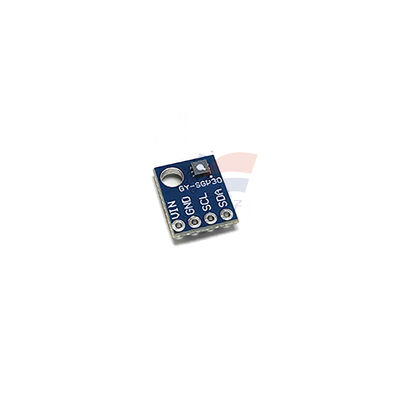

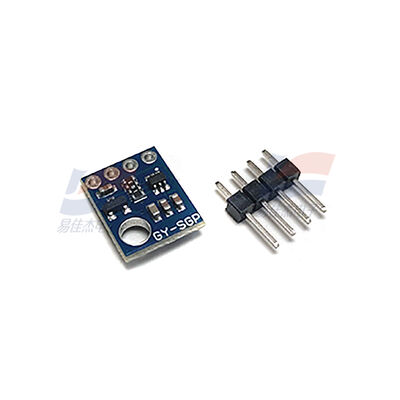

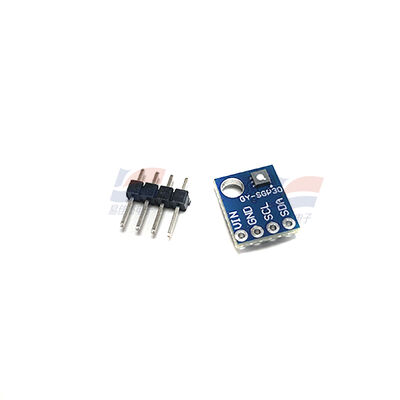

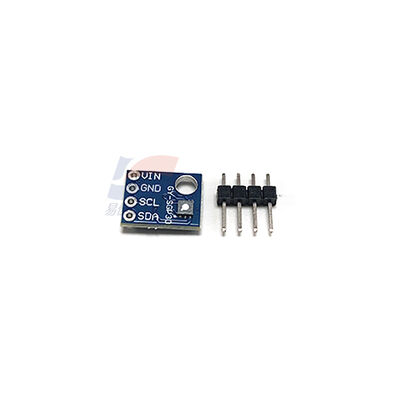

YJJ GY-SGP30 Gas Sensor Module TVOC/eCO2 Air Quality Measurement Formaldehyde Carbon Dioxide

Product Description:

YJJ GY-SGP30 Gas Sensor Module TVOC/eCO2 Air Quality Measurement Formaldehyde Carbon Dioxide

Features:

1. Core Parameters (GY-SGP30 Module) Table

Parameter item Specification Explanation

Core chip Sensirion SGP30 Metal oxide (MOX) multi-pixel sensing chip

Detected gas TVOC + eCO₂ Non-specific detection of formaldehyde, benzene, alcohol, CO, etc. VOCs

TVOC range 0 - 60000 ppb Resolution 1 ppb

eCO₂ range 400 - 60000 ppm Resolution 1 ppm

Operating voltage 3.3V / 5V compatible Board-mounted LDO, compatible with 3.3V/5V systems

Communication interface I²C Default address 0x58

Response time <15 seconds (T90) Quick response

Operating temperature -30°C ~ +60°C Wide temperature adaptation

Operating humidity 0 - 95% RH (no condensation) Resistant to humidity

Power consumption Working approximately 48mA; sleep mode < 10μA Low power consumption, supports battery power supply

Size 13 × 10.5 mm Miniature PCB module, 4-pin interface

Life expectancy > 5 years Long-term stability, automatic baseline calibration

II. Working principle

TVOC: Direct detection of various volatile organic gases (formaldehyde, benzene, alcohol, etc.), reflecting the comprehensive pollution level.

eCO₂: Non-direct measurement of CO₂, but converting VOC response into equivalent carbon dioxide concentration for risk control.

MEMS micro-heating: Maintains a working temperature of approximately 300°C to ensure stability and anti-interference.

III. Main applications (core scenarios)

Location: Low-cost, digital, universal indoor air quality monitoring

Smart home / household appliances

Home / vehicle air quality detector

Air purifiers, new fans, air conditioners: control (automatically turn on when)

Smart speakers, panels: Embedded IAQ monitoring

Office / commercial

Office, schools, shopping malls ventilation system control

Real-time monitoring of formaldehyde / VOC in newly renovated rooms

IoT and embedded systems

Environmental monitoring nodes, portable detectors

Robots, intelligent flower pots, vehicle equipment
