OXY-FLEX-1-H Zirconia O2 Sensors High Accuracy OXY-Flex Oxygen Analyser

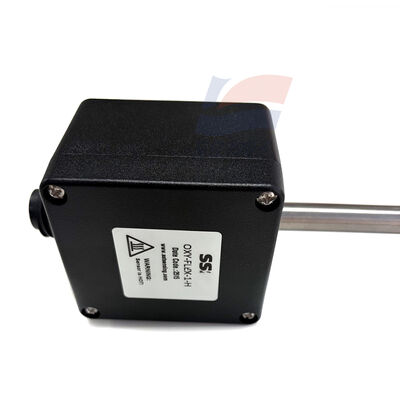

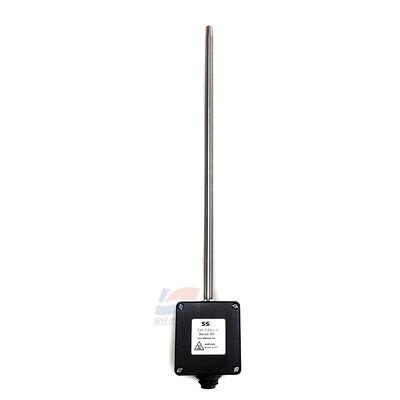

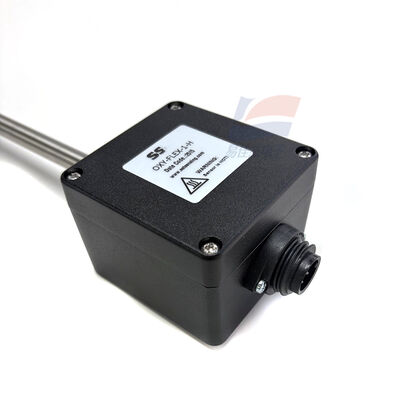

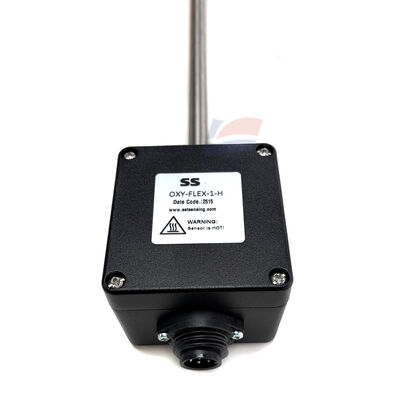

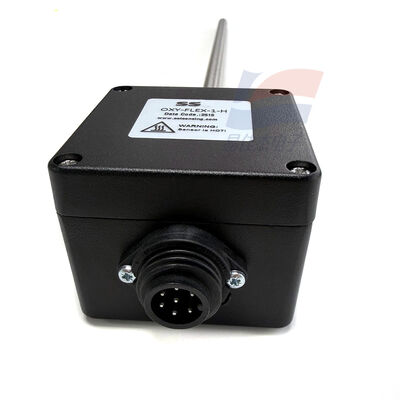

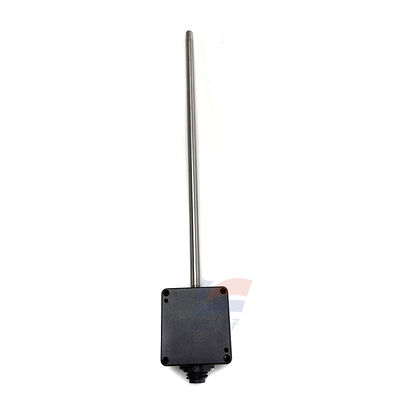

Large Image : OXY-FLEX-1-H Zirconia O2 Sensors High Accuracy OXY-Flex Oxygen Analyser

Product Details:

Place of Origin:	UK
Brand Name:	SST
Model Number:	OXY-FLEX-1-H

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

OXY-FLEX-1-H Zirconia O2 Sensors High Accuracy OXY-Flex Oxygen Analyser

Description

Accuracy:

±1%

Output:

4mA ~ 20mA

Operating Temperature:

-10°C ~ 85°C

Voltage:

Supply 24V

Highlight:

Zirconia oxygen sensor high accuracy

OXY-Flex oxygen analyser sensor

Gas sensor with zirconia probe

OXY-FLEX-1-H Zirconia O2 Sensors High Accuracy OXY-Flex Oxygen Analyser

FEATURES
• High accuracy linear output
• Externally triggered automatic or manual calibration
• Can be calibrated in fresh air (20.7% O2) or to any
other known O2 concentration
• Selectable output filtering allows adaptive, fast and dynamic or slow and stable output

OUTPUT VALUES:

Oxygen range (analogue output) b	0.1a—25% O2 or 0.1a—100% O2
Oxygen range (RS232 output)	0.1a and 100% O2
Accuracy after calibration c, d	1% O2
Repeatability after calibration c	0.5% O2
Output resolution	Analogue 4—20mA 0.01mA Analogue 0—10VDC 0.01V Digital RS232 0.01% O2
Response time	< 15s
Warm up time (prior to sensor operation)	60s
Output stabilisation time	~ 180s

TECHNICAL SPECIFICATIONS:

Supply voltage	24VDC ± 10%
Supply current	< 1A Operating at 24VDC < 2A Start-up at 24VDC
Digital output	RS232
Analogue output	4—20mA; load 600Ω max. 0—10VDC; load 10kΩ min

OXY-FLEX-1-H Zirconia O2 Sensors High Accuracy OXY-Flex Oxygen Analyser 0
