TGS2610-C00 LP Butane Gas Sensor Low Power Consumption TO-5

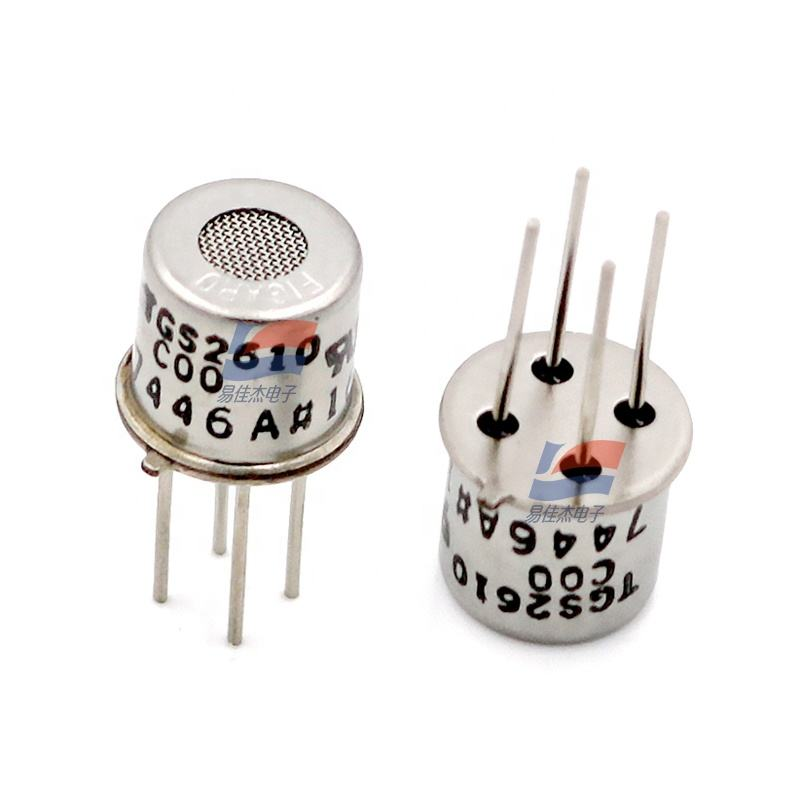

Large Image : TGS2610-C00 LP Butane Gas Sensor Low Power Consumption TO-5

Product Details:

Place of Origin:	Japan
Brand Name:	FIGARO
Model Number:	TGS2610-C00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

TGS2610-C00 LP Butane Gas Sensor Low Power Consumption TO-5

Description

Sensing Principle:

MOS Type

Standard Package:

TO-5 Metal Can

Target Gases:

Butane, LP Gas

Typical Detection Range:

1~25% LEL

Highlight:

TGS2610-C00 butane gas sensor

low power gas sensor TO-5

LP butane sensor with warranty

TGS2610-C00 LP Butane Gas Sensor Low Power Consumption TO-5

TGS2610-C00 is a semiconductor type gas sensor which combines very high sensitivity to LP gas with low power consumption and long life. Due to
miniaturization of its sensing chip, TGS2610-C00 requires a heater current of only 56mA and the device is housed in a standard TO-5 package.
TGS2610-C00 possesses small size and quick gas response, making it suitable for gas leakage checkers.
The TGS2610-C00 is able to satisfy the requirements of performance standards such as UL1484 and EN50194.

Features:
* Quick response
* Low power consumption
* Long life and low cost
* Uses simple electrical circuit

Applications:
* Portable LP gas detectors
* LP gas and vapor detection

Specification:

Standard circuit conditions

Heater voltage5.0±0.2V DC
Circuit voltage 5.0±0.2V DC Ps≤15mW
Load resistance variable 0.45kΩ min

Electrical characteristics under standard test conditions

Heater current 56±5mA
Heater current 56±5mA

Heater power consumption 280mW VH = 5.0V DC
Sensor resistance 1.0~10.0kΩ

Sensitivity (change ratio of Rs)

0.45~0.62

TGS2610-C00 LP Butane Gas Sensor Low Power Consumption TO-5 0
