4ND AG200-800 Nitrogen Dioxide NO2 Gas Sensor 3 Electrode Electrochemical

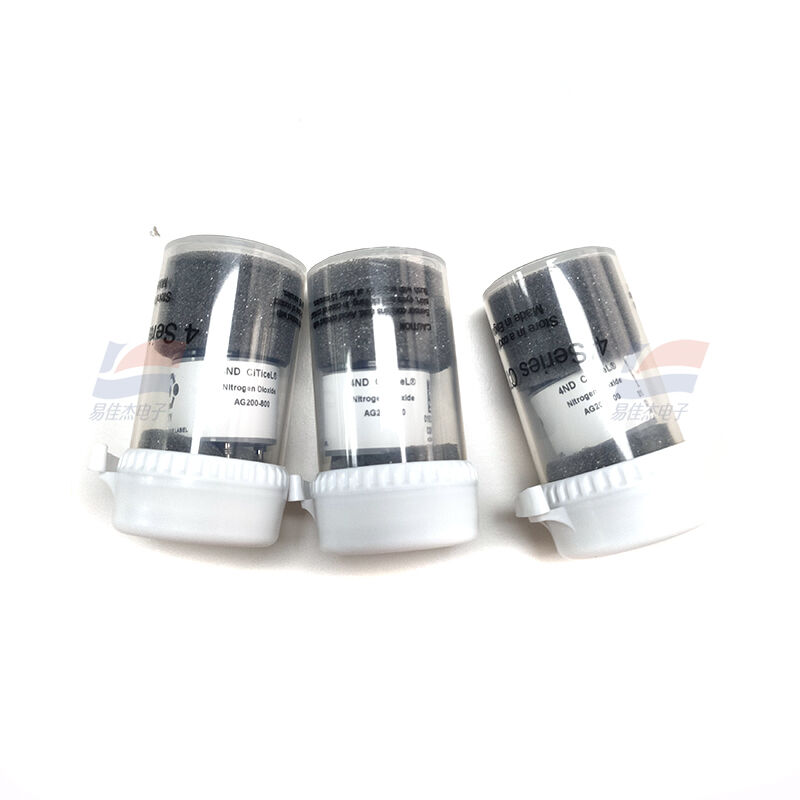

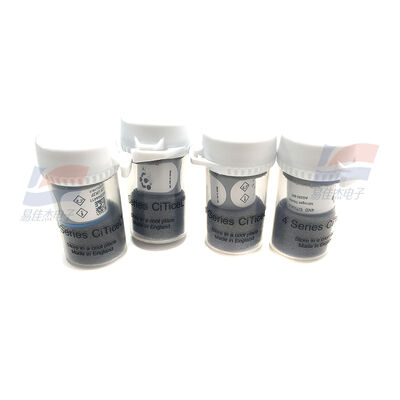

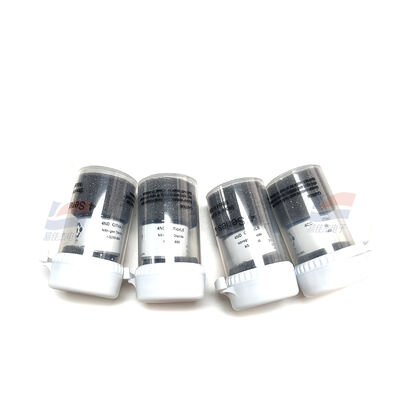

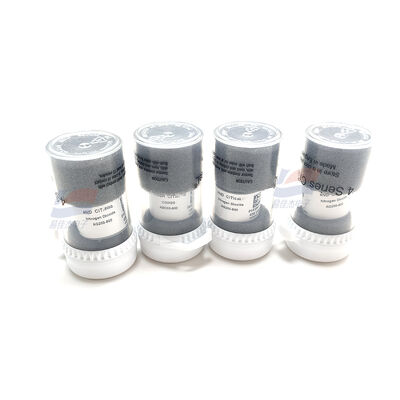

Large Image : 4ND AG200-800 Nitrogen Dioxide NO2 Gas Sensor 3 Electrode Electrochemical

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	4ND AG200-800

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

4ND AG200-800 Nitrogen Dioxide NO2 Gas Sensor 3 Electrode Electrochemical

Description

Measurement Range:

0-20 Ppm NO2

Maximum Overload:

150 Ppm NO2

Resolution:

0.1 Ppm

Filte:

None

Highlight:

NO2 gas sensor electrochemical

Nitrogen dioxide sensor 3-electrode

AG200-800 NO2 gas detector

4ND AG200-800 Nitrogen Dioxide NO2 Gas Sensor 3 Electrode Electrochemical

Specification:

Sensitivity	0.60 ± 0.15 µA/ppm
Response Time (T₉₀)	< 25 seconds
Baseline Offset (clean air)	-0.2 to +0.2 ppm equivalent
Zero Shift (+20°C to +40°C)	0.2 ppm equivalent
Repeatability	2% of signal

ELECTRICAL

ELECTRICAL	Recommended
Load Resistor	33 Ω Bias
Voltage	Not required

MECHANICAL

Housing Material	ABS
Weight	5g (approx.)
Orientation	Any

ENVIRONMENTAL

Operating Temperature Range	-20°C to +50°C
Operating Pressure Range	1 atm ± 10%
Operating Humidity Range	15% to 90% RH non-condensing

LIFETIME

Long Term Output Drift	< 2% signal drift / month
Recommended Storage Temp	0 to 20°C
Expected Operating Life	2 years in air
Storage Life	6 months in sealed container

4ND AG200-800 Nitrogen Dioxide NO2 Gas Sensor 3 Electrode Electrochemical 0
