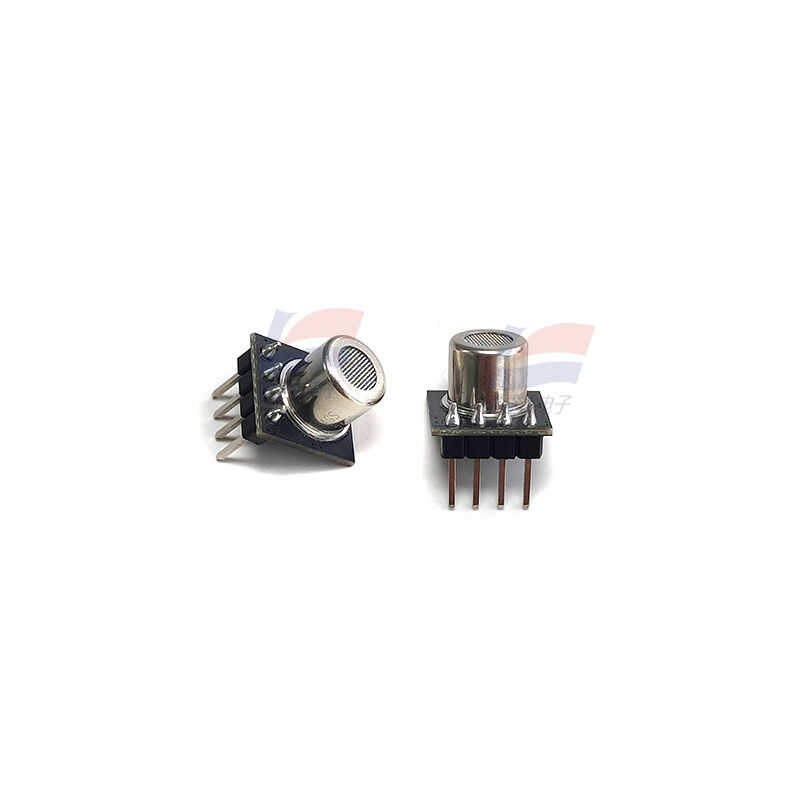

AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity

AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity
AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity

Large Image :  AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity

Product Details:
Place of Origin: China
Brand Name: YJJ
Model Number: AGS2620C00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Delivery Time: 3-5Workingdays
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000PCS/Month
Contact Now

AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity

Description
Highlight:

MEMS TVOC gas sensor high sensitivity

,

Semiconductor gas sensor with warranty

,

Oxygen gas sensor for air quality

AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity



Semiconductor-based TVOC gas sensors are often used as domestic alternatives to the Figaro TGS2620, featuring low power consumption, high sensitivity, and low cost, and are used for VOC and organic solvent detection.



Key Features

MEMS Process: Silicon-based micro-hot plate + metal oxide gas-sensitive material, resulting in fast response and good stability.

High Sensitivity: High sensitivity to VOCs such as ethanol, suitable for low-concentration detection.

Low Power Consumption Design: The heater consumes only 42 mA, suitable for battery-powered devices.

Simple Driving: Requires only 5V heating + 5V circuit power; an external resistor is sufficient to output a signal.



Specification:

Detectable gases

 Ethanol, benzene series compounds, ammonia, sulfides, cooking fumes, VOCs, etc.
Measuring range 50–5000 ppm (ethanol reference)
Power supply Heater 5.0 VDC; Circuit 5.0 VDC
Power consumption Heating power consumption approximately 210 mA; Heater current approximately 42 mA
Output Analog resistance signal, requires external load resistor to convert to voltage
Operating temperature -10–50°C; Humidity: 5%–95% RH (non-condensing)
Package TO-5 metal case, 4 pins; Dimensions: φ9.2 × 7.8 mm
Lifespan ≥5 years (normal environment)



AGS2620C00 MEMS Semiconductor TVOC Gas Sensor High Sensitivity 0



Tag:

Electrochemical O2 sensor,

Oxygen Analyzer Sensor,

Petrochemical Medical Oxygen Sensor
