MED-O2-LA Oxygen Gas Sensor Electrochemical 15S Response Low consumption

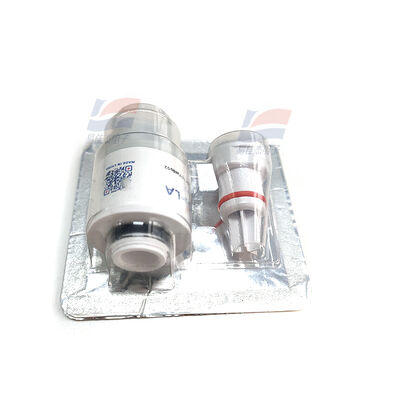

Large Image : MED-O2-LA Oxygen Gas Sensor Electrochemical 15S Response Low consumption

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	MED-O2-LA

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000PCS/Month

Contact Now

MED-O2-LA Oxygen Gas Sensor Electrochemical 15S Response Low consumption

Description

Detection Gas:

Measurement Range:

0 -100%VOL O2

Sensitivity:

8-15mV (in Air)

Response Time (T90):

<15 S

Highlight:

MED-O2-LA oxygen gas sensor

electrochemical oxygen sensor with warranty

low consumption oxygen sensor 15S response

MED-O2-LA Oxygen Gas Sensor Electrochemical 15S Response Low consumption

Description
MED-O2-LA Oxygen sensor is fuel-cell type electrochemical sensor. The reduction action of oxygen occurs on the electrode working and oxidation reaction of anode materials occurs, release charge to form current. The current generated is proportional to the partial pressure of oxygen and follows Faradi's law. The partial pressure of oxygen could be obtained by measuring value of current.

Application
Suitable for oxygen monitoring in oxygen machine, respiration and anesthesia etc. medical equipment.

Features
1. Low consumption
2. High precision
3. Wide linear range
4. Excellent repeatability and stability

Specification:

Detection gas	O2
Measurement Range	0 -100%VOL O2
Sensitivity	8-15mV (in air)
Response time (T90)	<15 s
Repeatability	<2%output value
Output Linearity	Linear in full scale
Interface P/N	5520257-2
Temperature Range	-20℃~50℃
Humidity Range	0%~90%RH (No Condensation)
Pressure range	0.5 Bar - 2.0 Bar
Anticipated using life	1.5x106%O2hours (20℃) 0.8x106%O2hours (40℃)

MED-O2-LA Oxygen Gas Sensor Electrochemical 15S Response Low consumption 0
