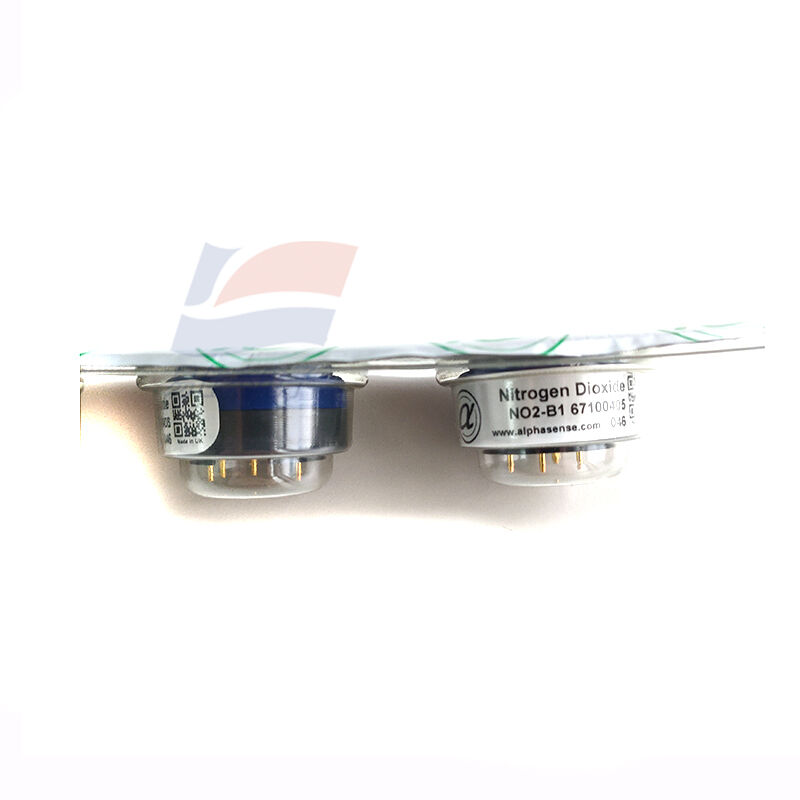

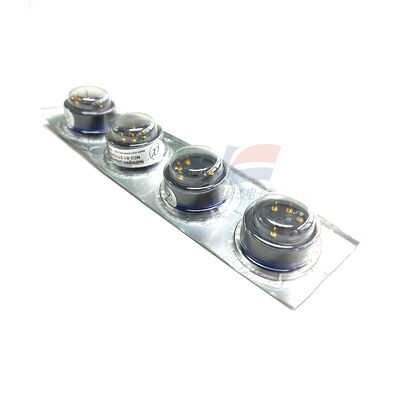

NO2-B1 Nitrogen Dioxide (NO₂) Gas Sensor Three-Electrode Electrochemistry B Series

Large Image : NO2-B1 Nitrogen Dioxide (NO₂) Gas Sensor Three-Electrode Electrochemistry B Series

Product Details:

Place of Origin:	UK
Brand Name:	Alphasense
Model Number:	NO2-B1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000PCS/Month

Contact Now

NO2-B1 Nitrogen Dioxide (NO₂) Gas Sensor Three-Electrode Electrochemistry B Series

Description

Measurement Range:

0–20 Ppm NO₂

Maximum Overload:

100 Ppm

Type:

3-Electrode Electrochemical

Package:

B Series (φ32 Mm, 4-pin)

Highlight:

NO2 gas sensor electrochemical

Nitrogen Dioxide sensor three-electrode

B Series NO2 sensor

NO2-B1 Nitrogen Dioxide (NO₂) Gas Sensor Three-Electrode Electrochemistry B Series

Interference Immunity (Cross-sensitivity, Typical Values)
NO (Nitric Oxide): <5% (Low interference)
SO₂ (Sulfur Dioxide): <2%
CO, H₂, O₂, CO₂: Negligible (<1%)
H₂S: <10% (Requires filtration)

Specification:

Sensitivity	−450 to −1000 nA/ppm (10 ppm NO₂)
T90 Response	<60 s (0 → 10 ppm)
Baseline (Zero Point)	<±0.2 ppm equivalent
Resolution	<0.02 ppm (RMS noise)
Linearity Error	<±0.2 ppm (0–10 ppm); <±0.4 ppm (10–20 ppm)

NO2-B1 Nitrogen Dioxide (NO₂) Gas Sensor Three-Electrode Electrochemistry B Series 0
