MRT511 Thermopile Temperature Sensor MEMS TO-46 Metal Non-contact Temperature

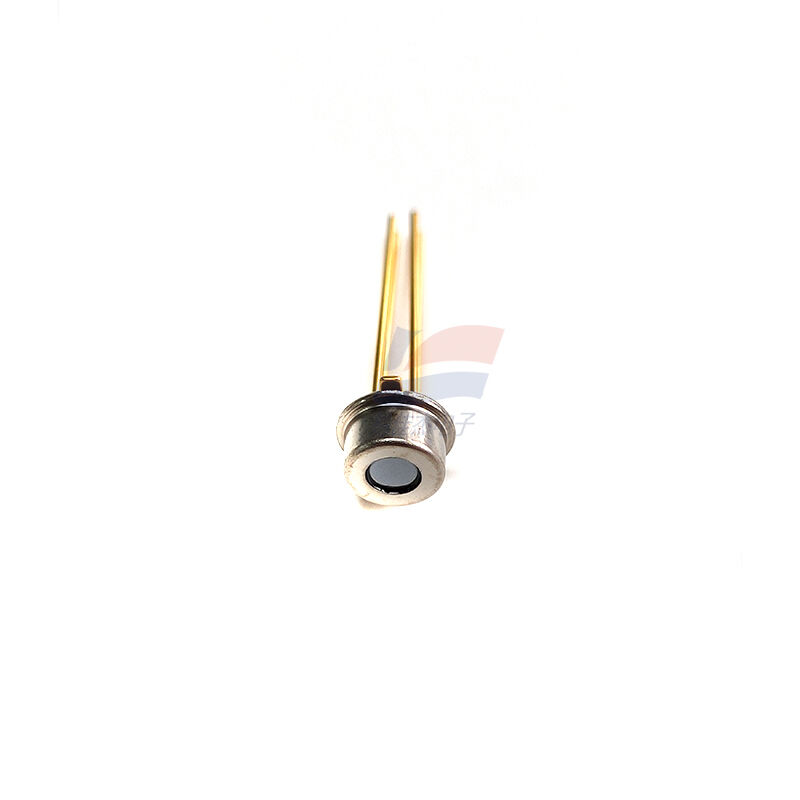

Large Image : MRT511 Thermopile Temperature Sensor MEMS TO-46 Metal Non-contact Temperature

Product Details:

Place of Origin:	China
Brand Name:	YJJ
Model Number:	MRT511

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000PCS/Month

Contact Now

MRT511 Thermopile Temperature Sensor MEMS TO-46 Metal Non-contact Temperature

Description

Sensitive Area:

1.6×1.6 Mm

Field Of View:

105 Degree

Thermopile Resistor:

120±30 KΩ

Noise Voltage:

45 NV/Hz 1/2

Highlight:

MRT511 thermopile temperature sensor

MEMS TO-46 metal temperature sensor

non-contact gas temperature sensor

MRT511 Thermopile Temperature Sensor MEMS TO-46 Metal Non-contact Temperature

Features
* TO-46 metal package
* High sensitivity
* Quick response, Good stability
* High filter transmittance
* High precision NTC

Applications
* Non-contact temperature measuring
* Infrared thermometer, such as ear temperature and forehead temperature measurement
* Continuous temperature control of production process
* Household appliances (Microwave oven, hair dryers, air conditioners etc), intelligent temperatureinductionand control system
* Human presence detection

Specification:

Noise equivalent power	0.27 nW/Hz¹ᐟ²
Response rate	124 V/W
Time constant	10 ms
Detection rate	1.0 × 10⁸ cmHz¹ᐟ²/W
NTC resistance	100 ± 2% KΩ
NTC(β)	3950 ± 1%
Working temperature	-30 ~ 100℃
Storage temperature	-40 ~ 110℃

MRT511 Thermopile Temperature Sensor MEMS TO-46 Metal Non-contact Temperature 0
