OOA101 Electrochemical Oxygen Sensor for Automotive Industry Medical Equipment Industrial Monitoring

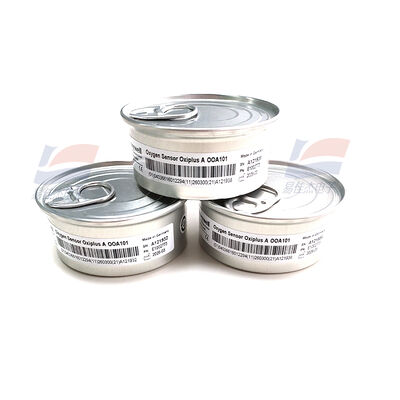

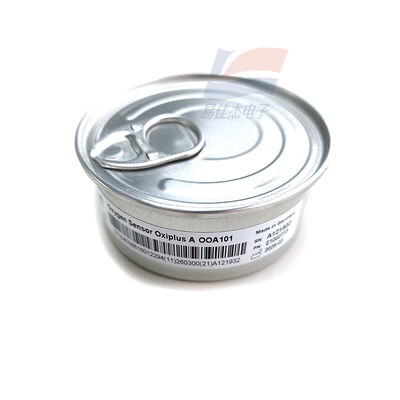

Large Image : OOA101 Electrochemical Oxygen Sensor for Automotive Industry Medical Equipment Industrial Monitoring

Product Details:

Place of Origin:	USA
Model Number:	OOA101

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

OOA101 Electrochemical Oxygen Sensor for Automotive Industry Medical Equipment Industrial Monitoring

Description

Detected Gas:	Oxygen	Detection Range:	0 ~ 100 % Vol
Response Time (T90):	≤ 5 S	Zero Offset:	< 50 μV (Pure Nitrogen)
Working Temperature:	0 ℃ ~ +45 ℃	Working Pressure:	70 ~ 1250 KPa
Highlight:	Electrochemical oxygen sensor automotive , Medical equipment oxygen sensor , Industrial gas monitoring sensor

OOA101 Electrochemical Oxygen Sensor for Automotive Industry Medical Equipment Industrial Monitoring

Product Features:

High-precision galvanic cell oxygen sensor imported from Germany (Envitec).
Ultra-fast response speed, T90 ≤ 5 seconds for real-time oxygen detection.
High measurement accuracy with tiny zero offset and stable linear output.
Built-in moisture-proof structure, suitable for high humidity working environment.
Certified with PTB-A 18.10 and BAR 97 for automotive emission testing.
Compact integrated structure with dedicated plug terminal for easy installation.
Long service life and outstanding long-term signal stability.

Product Applications:

Automotive Industry: Vehicle exhaust gas analyzer and automobile gas detection equipment.
Medical Equipment: Medical anesthesia machines, ventilators and oxygen concentration monitoring.
Industrial Monitoring: Confined space oxygen monitoring and inert gas protection detection.
Environmental Instrument: Ambient air quality inspection and combustion gas analysis.
Laboratory Equipment: Precision oxygen content analysis and experimental gas monitoring.

Detected Gas	Oxygen (O2)
Detection Range	0 ~ 100 % Vol
Accuracy	0~3.3%: ±0.1%;3.4~100%: ±3% FS
Response Time (T90)	≤ 5 s
Zero Offset	< 50 μV (Pure nitrogen)
Working Temperature	0 ℃ ~ +45 ℃
Working Humidity	0% ~ 99% RH (Non-condensing)
Working Pressure	70 ~ 1250 kPa
Weight	Approx. 28 g
Interface Type	3 Pin Molex Connector
Service Life	4~6 years (In air)

OOA101 Electrochemical Oxygen Sensor for Automotive Industry Medical Equipment Industrial Monitoring 0
