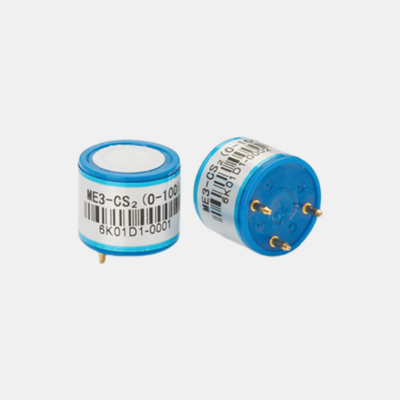

ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical

Large Image : ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical

Product Details:

Place of Origin:	CN
Model Number:	ME3-CS2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Paper box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	5000pcs

Contact Now

ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical

Description

Standard Measurement Range:	0-100 Ppm	Maximum Measurement Limit:	200 Ppm
Sensitivity:	(0.9±0.3) UA/ppm	Resolution:	0.1 Ppm
Response Time:	< 120 S	Bias Voltage:	300 MV
Highlight:	Carbon Disulfide gas sensor , CS2 gas detection sensor , Petrochemical CS2 gas sensor

ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical

Product Features:

Low power consumption, high accuracy and high sensitivity.
Wide linear range, strong anti‑interference capability.
Excellent repeatability and stability.
Temperature compensation with superior linear output.
UART and PWM output available.
Long service life (up to 2 years).
Resists moisture interference, no poisoning.

Applications:

Petroleum & petrochemical industry.
Pharmaceutical manufacturing.
Environmental protection and air quality monitoring.

Target Detection Gas	Carbon Disulfide (CS2)
Standard Measurement Range	0-100 ppm
Maximum Measurement Limit	200 ppm
Sensitivity	(0.9±0.3) uA/ppm
Resolution	0.1 ppm
Response Time	< 120 s
Bias Voltage	300 mV
Recommended Load Resistance	10 Ω
Repeatability	< 2% of output value
Long-term Stability (per month)	< 2%
Zero Drift (-20℃ to 40℃)	4 ppm
Operating Temperature Range	-20℃ to 50℃
Operating Humidity Range	15% to 90% RH (non-condensing)
Operating Pressure Range	Standard atmospheric pressure ± 10%

ME3-CS2 Carbon Disulfide (CS2) Gas Sensor for Carbon Disulfide (CS2) Gas Detection in Petroleum Petrochemical Pharmaceutical 0
