NE4-CL2 Electrochemical Chlorine CL2 Gas Sensor 3 Electrode Low Power

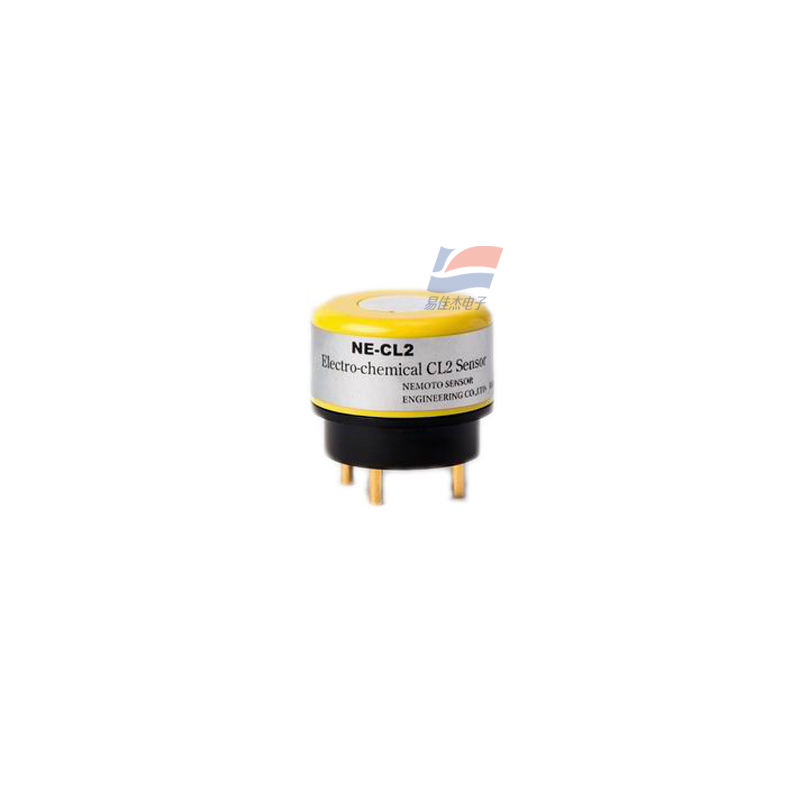

Large Image : NE4-CL2 Electrochemical Chlorine CL2 Gas Sensor 3 Electrode Low Power

Product Details:

Place of Origin:	Japan
Brand Name:	Nemoto
Model Number:	NE4-CL2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

NE4-CL2 Electrochemical Chlorine CL2 Gas Sensor 3 Electrode Low Power

Description

Detectable Gas:

Chlorine (Clz)

Detection Range:

0-10 Ppm

Maximum Overload:

50 Ppm

Output Current:

600 +-150 NA/ppm

Highlight:

electrochemical chlorine gas sensor

low power CL2 gas sensor

3 electrode chlorine sensor

NE4-CL2 Electrochemical Chlorine CL2 Gas Sensor 3 Electrode Low Power

General Description:
The NE4-CL2 is an electrochemical gas sensor with 3 electrodes for the detection of Chlorine (Cl2) in a variety of industrial and commercial gas detection applications.

Exhibiting high performance with long-term stability, this compact (20.4mm dia) sensor is suitable for portable Gas Detection Instruments or Fixed Gas Detection heads.

* 3-Electrode design for greater stability

* Compact, leak-proof enclosure

* Resistant to shocks and vibration

* Linear output

* Highly specific to target gas

* Unaffected by humidity

* Low Power consumption

* Very Low Long term drift

Specification:

Zero Offset (20°C)	< +/- 0.2 ppm equivalent
Reproducibility	+/- 2%
Output drift in air	Less than 2% / month
Response time (90%)	< 40 seconds
Temp. depend. in air	< +/- 0.5 ppm (-20 to 50°C)
Expected lifetime	>2 years

NE4-CL2 Electrochemical Chlorine CL2 Gas Sensor 3 Electrode Low Power 0
