SO2-BF Sulphur Dioxide Gas Sensor Electrochemistry High Precision Monitoring

Large Image : SO2-BF Sulphur Dioxide Gas Sensor Electrochemistry High Precision Monitoring

Product Details:

Place of Origin:	UK
Brand Name:	Alphasense
Model Number:	SO2-BF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

SO2-BF Sulphur Dioxide Gas Sensor Electrochemistry High Precision Monitoring

Description

Measurement Principle:

Electrochemical

Measuring Range:

0–100 Ppm

Sensitivity:

300–480 NA/ppm @20 Ppm SO₂

Response Time:

T90 < 40 Seconds

Highlight:

SO2-BF sulphur dioxide gas sensor

electrochemistry gas sensor high precision

sulphur dioxide monitoring sensor

SO2-BF Sulphur Dioxide Gas Sensor Electrochemistry High Precision Monitoring

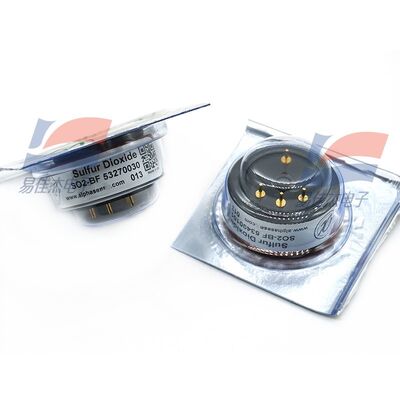

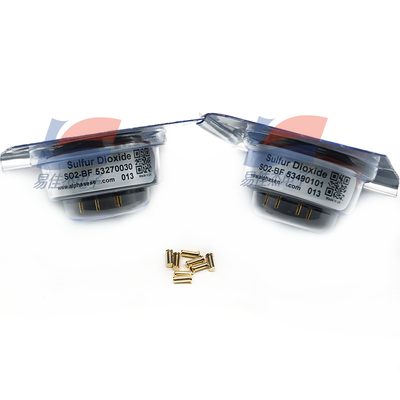

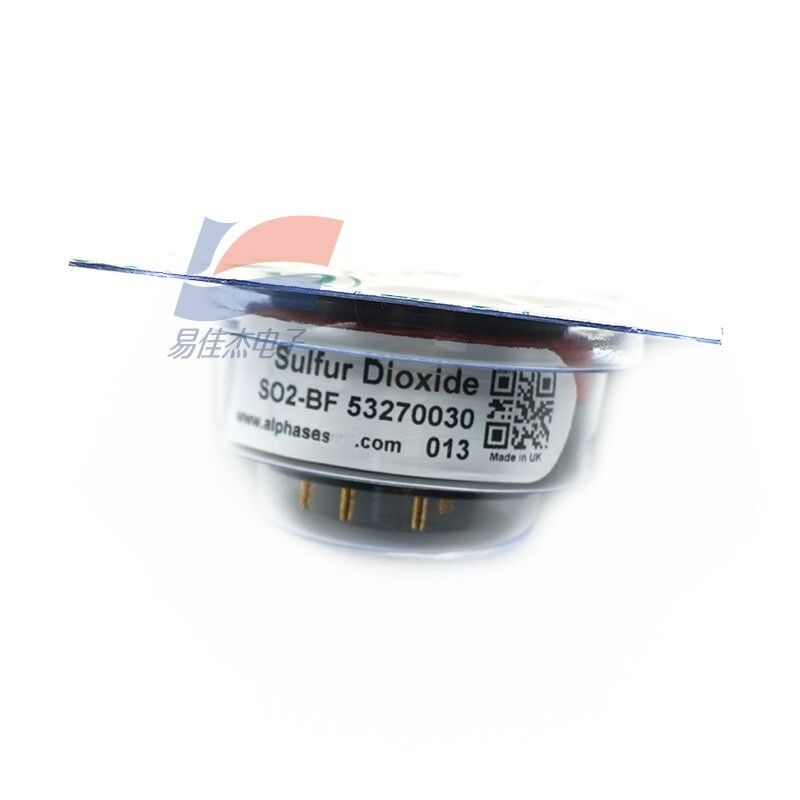

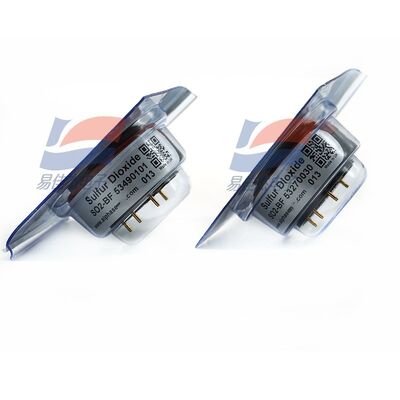

The SO2-BF electrochemical sulfur dioxide (SO₂) gas sensor, belonging to the B series (32mm diameter), is used for high-precision monitoring of SO₂ in stationary pollution sources and ambient air.

Typical Applications:

* Flue Gas Emission Monitoring (CEMS): SO₂ detection in flues of power plants, steel mills, petrochemical plants, etc.

* Ambient Air Quality Monitoring: Urban stations, industrial zone boundary stations.

* Semiconductor Cleanrooms: ppb-level SO₂ pollution control.

* Petrochemical and Chemical Industries: Process leak and safety monitoring.

Specification:

Resolution	<0.1 ppm; Zero drift <0.1 ppm/year
Linearity	±2 ppm (full scale)
Operating conditions	Temperature -30～50℃; Humidity 15%–90% RH; Pressure 80–120 kPa
Lifespan	>24 months (2-year warranty)

SO2-BF Sulphur Dioxide Gas Sensor Electrochemistry High Precision Monitoring 0
