CL2-A1 Electrochemical Chlorine Gas Sensor A-Series Three-Electrode Fixed Gas Detector

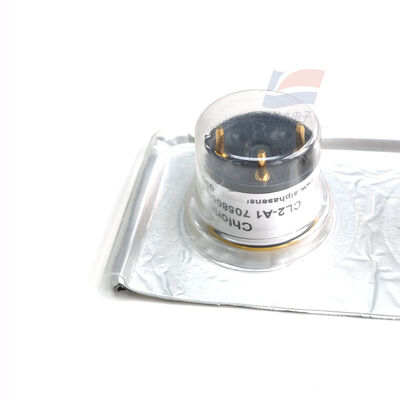

Large Image : CL2-A1 Electrochemical Chlorine Gas Sensor A-Series Three-Electrode Fixed Gas Detector

Product Details:

Place of Origin:	UK
Brand Name:	Alphasense
Model Number:	CL2-A1

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

CL2-A1 Electrochemical Chlorine Gas Sensor A-Series Three-Electrode Fixed Gas Detector

Description

Sensitivity:

-350 To -750 NA/ppm

T90 Response Time:

<60 Seconds

Resolution:

<0.02 Ppm

Linear Range:

0–5 Ppm

Highlight:

CL2-A1 chlorine gas sensor

A-series electrochemical gas detector

three-electrode fixed gas sensor

CL2-A1 Electrochemical Chlorine Gas Sensor A-Series Three-Electrode Fixed Gas Detector

Typical Application Scenarios
* Chlorine leak monitoring in chlorination facilities at waterworks and wastewater treatment plants
* Toxic gas inspections in paper bleaching, chemical processing, and pharmaceutical production areas
* Gas safety monitoring in swimming pool disinfection areas and hospital sterilization zones
* Portable gas detectors (such as the X-am 5600 mentioned previously) equipped with an optional chlorine detection module

Specification:

Nominal service life	24 months (2 years)
Recommended load resistance	33Ω
Annual zero drift	<0.05 ppm; annual sensitivity drift: <10%
Operating temperature	-20°C to +50°C
Operating humidity	15% to 90% RH (non-condensing)
Operating pressure	80 to 120 kPa
Dimensions	Φ20.2 mm × 16.5 mm, standard A-series universal package
Weight	<6 g

CL2-A1 Electrochemical Chlorine Gas Sensor A-Series Three-Electrode Fixed Gas Detector 0
