7NT AF704-400 Nitric Oxide NO Electrochemical Gas Sensor 7Series For Gas Detector

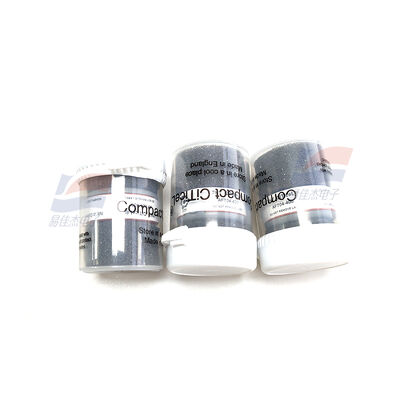

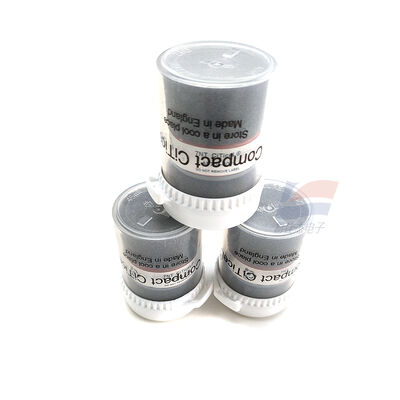

Large Image : 7NT AF704-400 Nitric Oxide NO Electrochemical Gas Sensor 7Series For Gas Detector

Product Details:

Place of Origin:	UK
Brand Name:	CITY
Model Number:	7NT

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Box
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

7NT AF704-400 Nitric Oxide NO Electrochemical Gas Sensor 7Series For Gas Detector

Description

Measurement Range:

0–100 Ppm NO

Maximum Overload:

1500 Ppm NO

Sensitivity:

0.55 ± 0.11 μA/ppm

Response Time T90:

≤15 Seconds

Highlight:

7Series nitric oxide gas sensor

NO electrochemical gas detector sensor

AF704-400 gas sensor with warranty

7NT AF704-400 Nitric Oxide NO Electrochemical Gas Sensor 7Series For Gas Detector

Typical Applications
* NO concentration monitoring for boilers and industrial flue gas emissions
* Automotive exhaust testing equipment
* Online monitors for atmospheric pollution sources
* Portable toxic gas detectors and fixed online gas alarms
* Real-time NO detection in flue gas for denitrification (SCR) processes

Specification:

Resolution	0.5 ppm (with OEM circuitry)
Baseline drift (clean air)	0 to +3 ppm NO equivalent
Recommended bias voltage:	+300 mV
Recommended load resistor:	10 Ω
Electrode structure:	3-electrode electrochemical sensor
Operating temperature:	-20°C to +50°C
Operating humidity:	15% to 90% RH (non-condensing)
Service life:	Nominally 2 years in air
Long-term drift:	≤2% of signal value per month
Storage conditions:	6 months in original sealed container
Package:	Industry-standard 7-series round 4-pin through-hole package
Outer diameter:	Φ32 mm; Height: 16.6 mm
Weight:	17 g
Mounting method	PCB socket mounting

7NT AF704-400 Nitric Oxide NO Electrochemical Gas Sensor 7Series For Gas Detector 0
