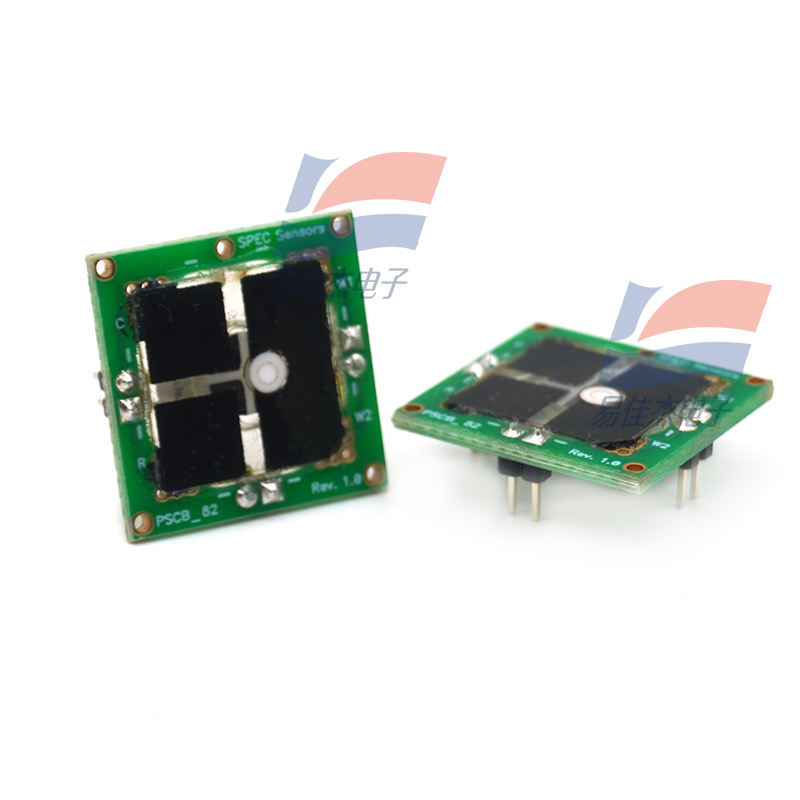

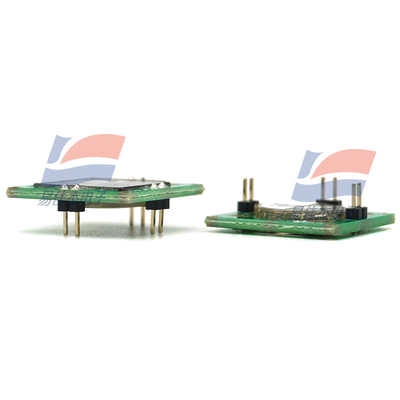

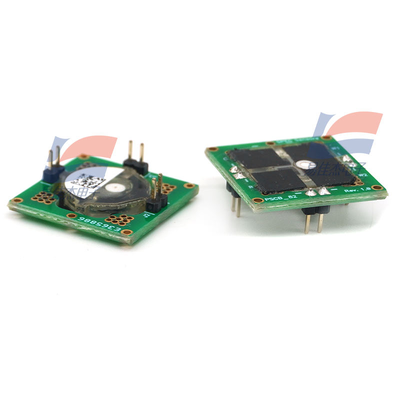

3SP-O3-5P Electrochemical Ozone Gas Sensor Ultra-low Power Consumption

Large Image : 3SP-O3-5P Electrochemical Ozone Gas Sensor Ultra-low Power Consumption

Product Details:

Place of Origin:	USA
Brand Name:	SPEC
Model Number:	3SP-O3-5P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

3SP-O3-5P Electrochemical Ozone Gas Sensor Ultra-low Power Consumption

Description

Detection Range:

0 ~ 5 Ppm O3

Sensitivity:

-60 ±10 NA/ppm

Resolution:

<20 Ppb

Response Time (T90):

<15 S

Highlight:

electrochemical ozone gas sensor

ultra-low power ozone sensor

3SP-O3-5P ozone gas sensor

3SP-O3-5P Electrochemical Ozone Gas Sensor Ultra-low Power Consumption

Model Suffix Explanation
3SP: Ultra-low power micro-sensor series
O3: Target gas = Ozone
5P: Full-scale range = 5 ppm
A wide-range version, 3SP-O3-20 (0–20 ppm), is also available in the same series.

Typical Application Scenarios
Indoor air purifiers and household air quality monitors
Portable ozone disinfection equipment monitors
Urban atmospheric environment monitoring and IoT terminals for air quality in industrial parks
Ozone leak monitoring in industrial workshops and trace ozone detection in laboratories

Specification:

Repeatability Within	±3% FS
Operating temperature	-30°C to 50°C (recommended: -20°C to 40°C)
Service life	>5 years under normal conditions; up to 10 years in clean, low-ozone environments
Dimensions	20 × 20 × 3.98 mm (ultra-thin, under 4 mm)

3SP-O3-5P Electrochemical Ozone Gas Sensor Ultra-low Power Consumption 0
