YJJ SPXCDXSB1SS Sensepoint XCD Industrial Fixed Gas Detector Plug-in Sensor Probe

Product Description:

YJJ SPXCDXSB1SS Sensepoint XCD Industrial Fixed Gas Detector Plug-in Sensor Probe

Features:

I. Basic Definition of Model SPXCDXSB1SS

Series: Sensepoint XCD Industrial Fixed Gas Detector Plug-in Sensor Probe

Medium: CO₂ Carbon Dioxide

Detection Range: 0 - 2% VOL (0 - 20000 ppm)

Detection Principle: NDIR Non-Dispersive Infrared (Infrared Absorption, no electrolyte, long lifespan)

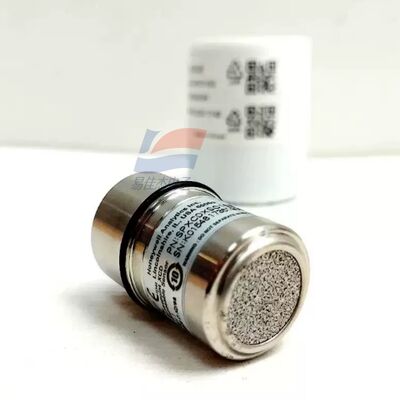

SPXCDXSB1SS Sensor Probe

Sensepoint XCD Complete Detector

II. Core Technical Parameters

1. Gas Detection Performance

Measurement Range: 0 - 2% Vol CO₂ (0 - 20000 ppm)

Accuracy: ±2% FS Full Scale Error

90% Response Time T90: ≤ 20s

Zero Point Drift: Long-term stable, infrared principle not affected by water vapor, small toxic gas interference

Working Humidity: 0 - 100% RH (No Condensation Environment)

Working Temperature: -40°C - +65°C (Whole Machine Certified Temperature Range)

Expected Lifespan: More than 5 Years (Much Longer than Electrochemical Sensors)

2. Electrical Accessories (Combined with XCD Transmitter Complete Detector)

Whole Machine Power Supply: 16 - 32VDC (Standard 24VDC Industrial DC)

Whole Machine Power Consumption: 208.3mA, Startup Impact Current Maximum 800mA@24V

Standard Signal Output: 4 - 20mA Two-Wire System (Can be/ Pull Current)

Digital Communication: RS485 Modbus RTU (Remote Reading of Concentration, Fault, Calibration Information)

Relay Output: 3 Channels 5A/250VAC Programmable Relay (High Alarm, Low Alarm, Fault Alarm)

Protection Grade: Whole Machine IP66, Explosion-proof Certification ATEX / IECEx / UL / CCCF, Suitable for Hazardous Explosion Zones

3. Mechanical Structure

Installation Method: Direct Insertion Snap-On, Tool-free Quick Replacement, Single-person On-site Maintenance

Probe Shell: 316 Stainless Steel Corrosion-resistant Shell

Transmitter Terminal: 2×3/4" NPT or M20 Cable Lug

Remote Installation: The most extended 30 meters for split installation of toxic/oxygen probes in the same series (CO₂ infrared model does not support remote transmission)

III. Product Core Advantages

Infrared NDIR Principle: No Electrolyte, No Poisoning, Resistant to H₂S, CO, Oil Gas Interference, Suitable for Complex Industrial Exhaust Gas

Wide Temperature Range Stability: -40~65°C High and Low Temperature Workshops, Outdoor Open Spaces Can Be Used

Explosion-proof Integration: Whole Machine Explosion-proof Certification, Compliant for Petroleum, Chemicals, Enclosed Space Storage

No Disassembly Maintenance: Magnetic Rod Non-Invasive Calibration, Settings, No Need to Open Cover and Power Off

General Industrial Signals: 4-20mA + Modbus, Directly Connect to PLC, DCS, Gas Alarm Host

Replacement Convenient: Plug-in Probe, Fault Direct Replacement, No Need for Whole Machine Return to Factory

IV. Main Application Scenarios

1. Chemical / Pharmaceutical Industry (Main Scenarios)

CO₂ Concentration Monitoring in Fermentation Factories, Biological Pharmaceutical Vessels to Prevent Suffocation Risks

CO₂ Leakage Alarm in Carbonated Beverage, Dry Ice Production Factories

CO₂ Interlock Ventilation in Enclosed Reactors, Basement Storage Tanks Area

2. Energy Storage / Lithium Battery New Energy

CO₂ Monitoring in Battery Static Storage Rooms, Battery Formation Workshops (Battery Thermal Uncontrolled Release Large Amount of CO₂)

Gas Safety Warning in Energy Storage Containers, Battery Cages, Fire Ventilation

3. Cold Storage, Cold Chain, Gas-Conditioned Warehousing

CO₂ Closed-loop Control in Controlled Atmosphere (CA) Warehouses, Extend Fruit Preservation Period

Prevent Leakage in Dry Ice Storage Cold Storage, Avoid Personnel Hypoxia Suffocation

4. Buildings and Underground Enclosed Spaces

CO₂ Ventilation Linkage Control in Underground Garages, Civil Defense Basements, Enclosed Machine Rooms

Environmental Safety Monitoring in Large Venues, Tunnels, Underground Pipe Lanes

5. Metallurgy, Welding, Heat Treatment Welding protective gas (CO₂) pipeline leakage detection

Online monitoring of atmosphere in heat treatment carbonization furnaces and annealing furnaces

6. Ships / Maritime (MED classification certification)

Concentration monitoring in sealed compartments and CO₂ fire suppression system areas of cargo holds
