4OX-V BW AAY80-390-BW Electrochemical Oxygen Gas Sensor 25% Vol O2

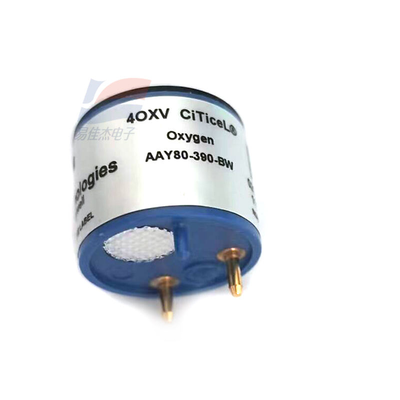

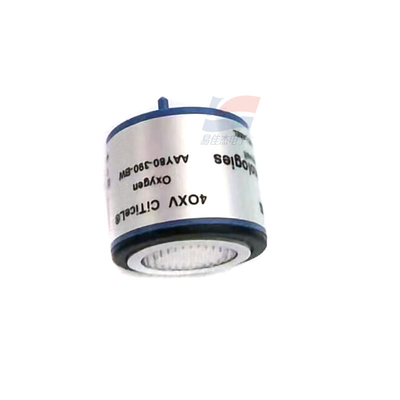

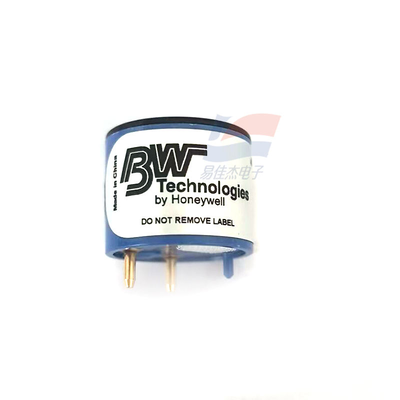

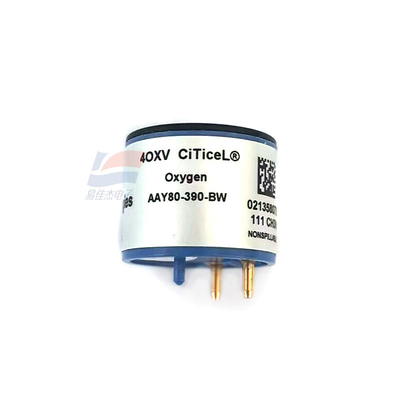

Large Image : 4OX-V BW AAY80-390-BW Electrochemical Oxygen Gas Sensor 25% Vol O2

Product Details:

Place of Origin:	UK
Brand Name:	BW
Model Number:	4OX-V BW

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	1000pcs/Month

Contact Now

4OX-V BW AAY80-390-BW Electrochemical Oxygen Gas Sensor 25% Vol O2

Description

Detection Principle:

Electrochemical Galvanic Cell

Measurement Range:

1%–25% Vol O2

Maximum Overload Tolerance:

30% Vol O₂

Nominal Output Current In Air:

0.10 ± 0.02 MA

Highlight:

Electrochemical Oxygen Gas Sensor 25% Vol

Oxygen Gas Sensor with warranty

AAY80-390-BW Electrochemical Sensor

4OX-V BW AAY80-390-BW Electrochemical Oxygen Gas Sensor 25% Vol O2

Product Features

1. High resistance to environmental interference; the signal remains stable despite fluctuations in temperature and humidity, with minimal false alarms.
2. Compact size and ultra-low power consumption; suitable for portable gas detectors.
3. Highly versatile: serves as a standard replacement sensor for BW series devices, as well as various handheld oxygen detectors used in mining and industrial applications.
4. Sealed electrolyte design; resistant to drying out or failure.

Specification:

Operating temperature	-20°C to +50°C
Storage temperature	0°C to 20°C (unactivated state)
Humidity	5% to 95% RH (non-condensing)
Operating atmospheric pressure	Atmospheric pressure ±20%
Service life	2 years (under normal conditions)

4OX-V BW AAY80-390-BW Electrochemical Oxygen Gas Sensor 25% Vol O2
