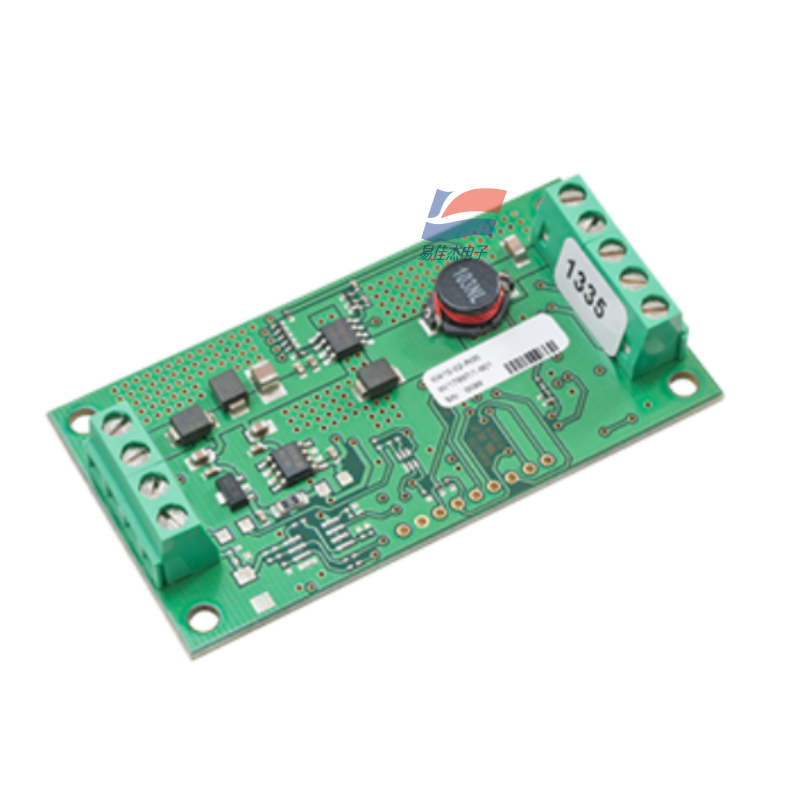

OXY-LC-485 Zirconia (ZrO2) Oxygen Transmitter Mainboard Signal Conditioning Interface Board

Large Image : OXY-LC-485 Zirconia (ZrO2) Oxygen Transmitter Mainboard Signal Conditioning Interface Board

Product Details:

Place of Origin:	UK
Brand Name:	SST
Model Number:	OXY-LC-485

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

OXY-LC-485 Zirconia (ZrO2) Oxygen Transmitter Mainboard Signal Conditioning Interface Board

Description

Oxygen Measurement Range:

0.1% – 25% Vol O2

Output Correspondence:

4 MA = 0% O₂, 20 MA = 25% O2

Measurement Accuracy:

±0.5% Vol O2

Repeatability:

≤0.5% Vol

Highlight:

Zirconia oxygen transmitter board

ZrO2 signal conditioning interface

Gas sensor mainboard with warranty

OXY-LC-485 Zirconia (ZrO2) Oxygen Transmitter Mainboard Signal Conditioning Interface Board

Product Features

1. No reference air required: Utilizes zirconia technology; eliminates the need for periodic reference gas replenishment, ensuring minimal maintenance.
2. Simple calibration: Achieves full-range accuracy with just a single-point calibration in fresh air (20.7% O₂).
3. Adaptive filtering: Balances rapid response with output stability, minimizing signal fluctuation.
4. Convenient wiring: Features screw terminals; compatible with industrial PLCs and data loggers.
5. Probe compatibility: Designed for use with SST zirconia oxygen probes featuring M18×1.5 threaded mounting (a standard specification for insertion-style oxygen measurement in furnaces and pipelines).

Specification:

Resolution	0.01% O₂
Response time (10% → 90%)	<4s
Warm-up/stabilization time	5–10 minutes
Supply voltage	20–28 VDC
Maximum current consumption	600mA @ 24VDC
4–20mA maximum load	600Ω
Circuit board operating temperature	-30°C to +70°C
Sample gas temperature range	-100°C to +250°C (high-temperature resistant probe)
Allowable gas flow velocity	0–10m/s

OXY-LC-485 Zirconia (ZrO2) Oxygen Transmitter Mainboard Signal Conditioning Interface Board
