I-01 Oxygen Gas Sensor Industrial electrochemical Fuel Cell Industrial-grade Long Service Life

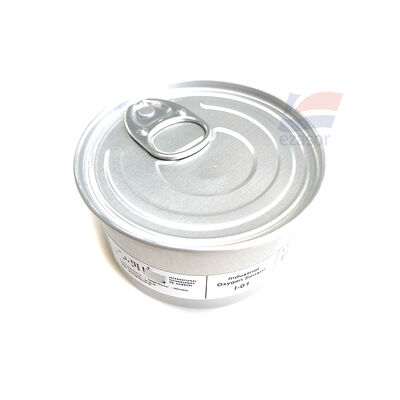

Large Image : I-01 Oxygen Gas Sensor Industrial electrochemical Fuel Cell Industrial-grade Long Service Life

Product Details:

Place of Origin:	UK
Brand Name:	IGT
Model Number:	I-01

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000pcs/Month

Contact Now

I-01 Oxygen Gas Sensor Industrial electrochemical Fuel Cell Industrial-grade Long Service Life

Description

Detected Gas:

Oxygen (O₂)

Measurement Range:

0.5% To 35% Vol

Service Life:

Up To 5 To 6 Years (in Air)

Signal Output:

9 To 16.5 MV

Highlight:

industrial oxygen gas sensor

electrochemical fuel cell sensor

long service life gas sensor

I-01 Oxygen Gas Sensor Industrial electrochemical Fuel Cell Industrial-grade Long Service Life

Designed based on the electrochemical principles of a galvanic fuel cell, it requires no external power supply and is specifically designed for oxygen concentration monitoring in harsh industrial environments.

Specification:

Response time	Less than 5 to 12 seconds (T90)
Operating temperature Recommended	5°C to 30°C (extreme limits -20°C to 50°C)
Operating humidity	Up to 100% RH
Monthly drift	<3%/month
Operating temperature	0 ~ 50°C
Pressure	700–1750 hPa
Recommended load resistance	≥1 MΩ
Weight Approx.	25 g

I-01 Oxygen Gas Sensor Industrial electrochemical Fuel Cell Industrial-grade Long Service Life
