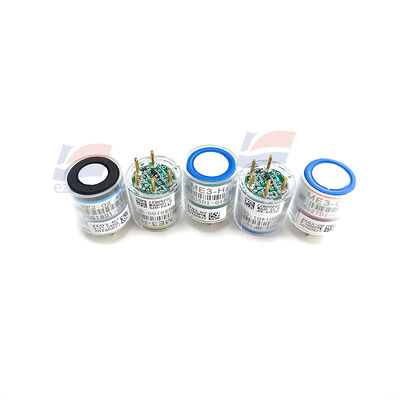

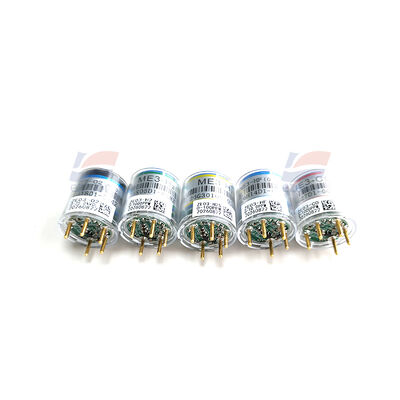

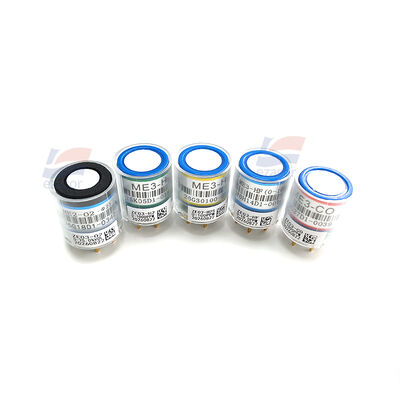

YJJ ZE03‑CO Electrochemical Carbon Monoxide Module 0-1000PPM For Boiler Room Gas Detection

Product Description:

YJJ ZE03‑CO Electrochemical Carbon Monoxide Module 0-1000PPM For Boiler Room Gas Detection

Features:

Core Detection & Electrical Parameters

| Model | ZE03-CO |

| Gas Detected | Carbon Monoxide (CO) |

| Detection Range | 0 - 1000 ppm |

| Resolution | 1 ppm |

| T90 Response Time | ≤ 30 seconds |

| Analog Output | 0.6 - 3.0 V (linear corresponding to concentration) |

| Digital Output | UART TTL - 3V, baud rate 9600bps |

| Supply Voltage | DC 5.0V ± 0.1V |

| Operating Current | < 10 mA |

| Expected Lifespan | 2 years (clean air environment) |

Environmental Conditions

- Operating Temperature: -20°C ~ +50°C

- Operating Humidity: 15% - 90% RH, no condensation

- Storage Temperature and Humidity: -20~50°C, 15 - 90% RH

Mechanical Dimensions

- Size: Φ23.5 mm × 24.5 mm

- Weight: < 15g

Main Features

1. Factory pre-calibration, built-in temperature compensation, reducing the workload of customers for secondary calibration

2. UART digital + analog voltage dual output, suitable for various embedded schemes such as MCUs, ADCs

3. Compact size, good anti-interference performance, suitable for integrated development of portable and fixed equipment

Typical Application Scenarios

Boiler room smoke gas monitoring, underground pipe gallery, CO monitoring in garages, metallurgical workshop, tunnel environment monitoring, household/industrial CO alarmers, portable CO detector, exhaust gas detection for internal combustion engines, toxic gas monitoring in mines
