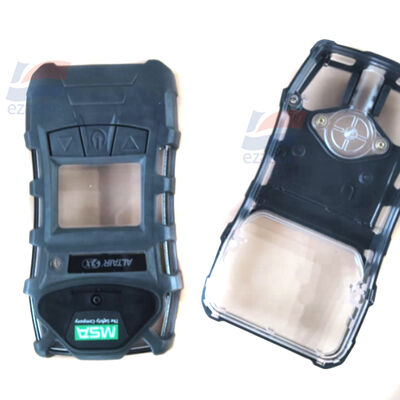

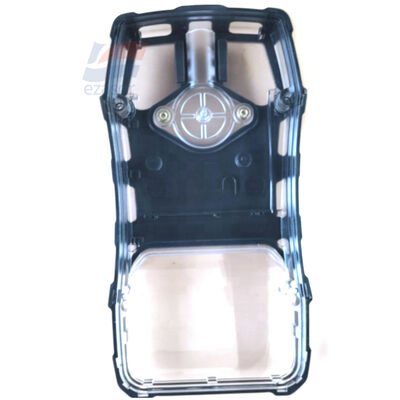

YJJ MSA 10114809 Lower Molded Case for ALTAIR 5X Multi Gas Detector, Repair Spare Housing

Product Description:

YJJ MSA 10114809 Lower Molded Case for ALTAIR 5X Multi Gas Detector Repair Spare Housing

Features:

MSA 10114809 (Altair 5X Lower Molded Case)

Parameter Description

Material Number: **10114809**, belongs to MSA ALTAIR® 5X (Sky Eagle 5X) original factory spare part: **Lower Molded Case (Bottom Shell / Lower Shell)**

Basic Information

- Part Name: MSA Lower Molded Case, Altair 5X Lower Shell

- Part Number: 10114809

- Compatible Host: **MSA ALTAIR 5X Skyhawk 5X Portable Multi-Gas Detector (Standard Version, not IR/PHOS Version)**

- Function: The lower part of the instrument's casing, housing the battery compartment, buzzer cavity, vibration motor, and fixing clips, and assembled with the front shell / upper shell to form the entire device, maintaining the overall IP65 protection structure

Physical Parameters

- Main Material: **Polycarbonate + PC Rubber Composite Rubber Coating** (anti-drop, wear-resistant, anti-slip soft rubber integrated molding)

- Color: Charcoal

- Protective Accessories: After assembling the complete device, it meets **IP65** dust and water protection

- Impact Resistance: Complies with the 3-meter drop design standard of the entire device

- Process: Injection molding, reserved buzzer sound hole, battery compartment positioning column, motherboard fixing position, belt clip installation position

- Usage: Replacement parts for damaged, cracked, or aged shells, **excluding the motherboard, sensors, battery, and screen**, pure shell parts

Complementary Complete Device

- Model: MSA ALTAIR 5X Five-Element Multi-Gas Detector

- Detection: LEL Combustible, O₂ Oxygen, CO Carbon Monoxide, H₂S Hydrogen Sulfide, expandable SO₂/SNO₂/NH₃/Cl₂/PID etc.

- Sensors: XCell Electrochemical Sensors

- Alarm: >95dB sound + High-brightness LED + Vibration Alarm; MotionAlert Fall Alarm, InstantAlert One-Click Alarm

- Sampling: Built-in Pump Suction Type

- Operating Temperature: -20°C ~ +50°C; Humidity 10~95% RH without condensation

Product Features

1. Original MSA factory parts, perfectly matched with Altair5X, maintaining the original explosion-proof and IP65 protection after assembly

2. PC + Rubber Coating, anti-drop, oil-resistant, suitable for industrial harsh environments

3. Integrated sound cavity, ensuring the output volume of the buzzer alarm

4. On-site maintenance and replacement, no need for return to the factory, reducing equipment downtime costs
