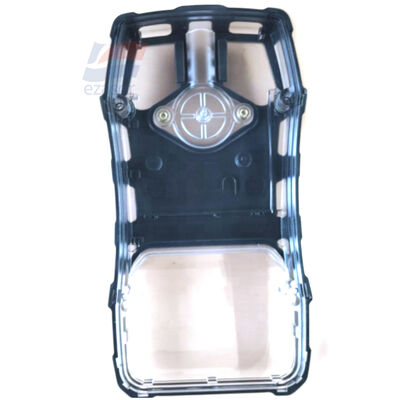

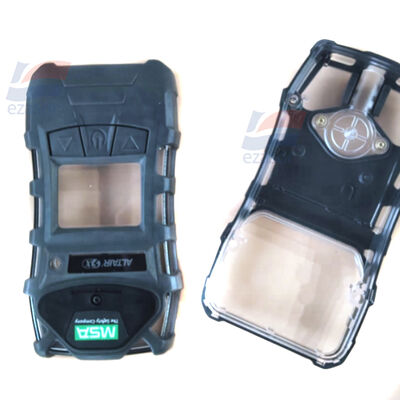

YJJ MSA 10114810 Lower Molded Case Char for ALTAIR 5X IR Gas Detector Original Repair Spare Housing

Product Description:

YJJ MSA 10114810 Lower Molded Case Char for ALTAIR 5X IR Gas Detector Original Repair Spare Housing

Features:

MSA 10114810 Altair 5X IR Infrared Version Lower Shell Parameter Description

Part Number: **10114810** | Part Name: MSA Lower Molded Case, Char, Altair 5XIR (Black Charcoal Color, Special Lower Shell for Altair 5X Infrared Model)

Differences: **10114809 is the regular 5X Lower Shell; 10114810 is the special lower shell with IR infrared sensor, and the internal structure of the shell is different and cannot be interchanged.**

Basic Information

- Part Number: 10114810

- Part Name: Altair 5XIR Lower Molded Case (Infrared Version Bottom Shell / Lower Shell)

- Compatible Host: **MSA ALTAIR 5X IR (Multi-gas Detector with Infrared CO₂/IR Flammable Gas Sensor)**

- Color: Charcoal (Black) (Available in a luminous version with part number 10114811)

- Usage: Original equipment maintenance spare part; replace cracked, damaged, or aged shells, **specifically designed for the IR infrared sensor version to reserve internal installation space**, the regular 5X (without IR) cannot use this lower shell

- Included: Pure shell, **without motherboard, sensor, battery, screen, pump components**

Material & Physical Parameters

- Material: PC Polycarbonate + rubber overmold (over-molded), shock-resistant, anti-slip, oil-resistant

- Protection: Maintains the entire machine's **IP65** dustproof and waterproof after assembly

- Drop Resistance: Standard design for a 3-meter drop

- Structural Difference Comparison 10114809: The internal cavity is enlarged, suitable for IR infrared sensor components, infrared sensor positioning columns, pump bracket installation positions; the sound output hole and battery compartment structure are optimized for the IR version battery module, **the shell mold is different, and it cannot be mixed**

- Working Environment (with the entire machine): -20°C ~ +50°C, humidity 10~95% RH without condensation

Introduction of the MSA ALTAIR 5X IR Companion Device

- Model: MSA ALTAIR 5X IR Pump-Driven Multi-Gas Detector

- Capable of: Electrochemical sensors + **IR Infrared Sensor (CO₂ or Infrared Combustible CH₄)**, up to 6 gases can be monitored simultaneously

- Sensors: XCell Electrochemical + MSA Infrared IR Sensor

- Alarm: >95dB Beeper, High-brightness LED, Vibration Alarm, MotionAlert Fall Alarm

- Sampling: Built-in pump suction sampling

- Explosion-proof: Intrinsically safe, suitable for enclosed spaces, oil, chemicals, sewage, etc.

Product Selling Points

1. MSA original factory original equipment, **only compatible with the Altair 5X IR infrared version**, mold cavity is adapted to the IR sensor module

2. PC rubber overmolded shell, shock-resistant, durable in harsh industrial environments

3. Maintains the original IP65 protection level and explosion-proof performance after replacement and repair

4. Direct on-site replacement, no need for the entire machine to be returned to the factory, shortens equipment downtime and maintenance time

Specifications:
