YJJ MSA 10114853 Front Housing With Integrated Filters for ALTAIR 5X Gas Detector Original Spare Part

Product Description:

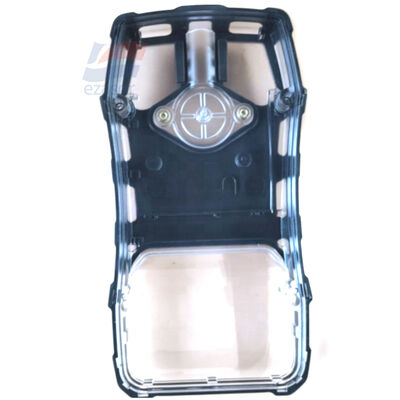

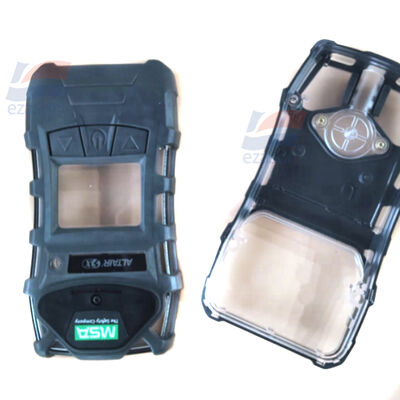

YJJ MSA 10114853 Front Housing with Integrated Filters for ALTAIR 5X Gas Detector Original Spare Part

Features:

MSA 10114853 Altair 5X Front Housing

Parameter Description

Part Number: 10114853

> Full Part Name: **MSA Front Housing with Integrated Filters, Altair 5X**, MSA Tianying 5X Front Housing (Integrated Filter + Panel Button Position) Dark Carbon Black

Basic Information

- Part Number: 10114853

- Part Name: Altair 5X Front Housing (with integrated filter membrane, panel identification)

- Compatible Models: **MSA ALTAIR 5X (standard version, without PID model; distinguish PID-specific front housing material number 10165249)**

- Color: Charcoal black

- Usage: Original factory repair spare part; directly replace if front housing cracks, screen window is damaged, or filter membrane ages; integrates intake dust-proof filter membrane assembly, **front housing includes key window, display window, sensor intake channel**

- Accessories Range: Only front housing assembly (comes with built-in filter membrane, panel label); **does not include motherboard, sensor, screen, battery**

Material & Physical Parameters

- Housing Material: PC Polycarbonate + rubber overmold, anti-slip and shock-resistant, resistant to industrial oil stains

- Integrated Components: Integrated intake dust-proof filter membrane, protects internal sensors from dust and water mist pollution

- Structural Features: Reserved 3 key holes, display window, sensor intake port; assembled with 10114809 ordinary version lower housing

- Overall Assembly Protection Level: **IP65** dustproof and waterproof

- Impact Resistance: Meets the 3-meter drop test standard for the entire machine

- Compatible Environment (machine): -20°C ~ +50°C, humidity 10~95% RH without condensation

Important Distinctions

1. 10114853: **Ordinary Altair 5X front housing**, not PID or IR infrared model;

2. IR infrared version 5X front housing: Different material number, needs to be paired with 10114810 infrared lower housing;

3. PID photoionization version front housing has an independent material number 10165249, **cannot be mixed**.

Product Selling Points

1. MSA original factory front housing assembly, comes with integrated filter membrane, one-stop replacement, saves the need for separate purchase of filter membrane

2. PC rubber overmold housing, shock-resistant and wear-resistant, suitable for harsh industrial conditions

3. Complete key and display window positioning, maintains original IP65 protection and explosion-proof performance after assembly

4. On-site quick repair and replacement, no need for the entire machine to be returned to the factory, shortens the downtime of gas detectors
