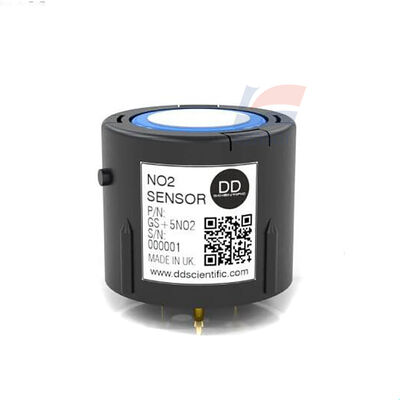

YJJ GS+5NO2 Electrochemical NO2 Sensor 0-200ppm for CEMS Flue Gas Monitoring

Product Description:

YJJ GS+5NO2 Electrochemical NO2 Sensor 0-200ppm for CEMS Flue Gas Monitoring

Features:

GS+5NO2 (DD-Scientific) Electrochemical Nitrogen Dioxide Sensor

Chinese Parameters

Product Name**: GS+5NO2 Electrochemical Nitrogen Dioxide Gas Sensor (5 Series Package)

Detected Gas**: Nitrogen Dioxide (NO₂)

Measurement Principle**: Three-electrode Electrochemistry

Range**: 0 - 200 ppm

Sensitivity**: 370 ± 70 nA/ppm

T90 Response Time**: < 40 s

Bias Voltage Requirement**: 0V (No additional bias voltage required)

Recommended Load Resistance**: 10 Ω

Resolution**: Typical < 0.5 ppm (Dependent on Back-End Circuit)

Environmental Specifications

- Operating Temperature**: -20°C ~ +50°C

- Operating Humidity**: 15% ~ 90% RH, No Condensation

- Pressure Range**: 800 ~ 1200 mbar

- Recommended Storage Temperature**: 0°C ~ 20°C

Life and Stability

- Expected Service Life**: ≥ 24 Months (Air Environment)

- Warranty**: 24 Months

- Packaging**: 5 Series, 3 Signal Pins + 1 Positioning Pin, Diameter 30.5mm

Core Features

0V Bias, Simple Peripheral Circuit, Facilitates Instrument Integration

Strong Environmental Stability, Fast Response Recovery

Complies with EN50379 Emission Monitoring Standards

Standard 5 Series Enclosure, Compatible with GS+5SO2 Series Assembly

Suitable for Smoke Gas Emission Monitoring, Portable Smoke Gas Analyzer, Industrial Safety Detection, Boiler Tail Gas, Chemical Waste Gas Monitoring, Fixed NO₂ Gas Detector, Vehicle Exhaust Detection

Typical Applications

CEMS Smoke Gas Emission Monitoring, Portable Smoke Gas Analyzer, Industrial Safety Detection, Boiler Tail Gas, Chemical Waste Gas Monitoring, Fixed NO₂ Gas Detector, Vehicle Exhaust Detection
