SGX-4CO Carbon Monoxide Gas Sensor Electrochemical 4Series General-purpose Industrial

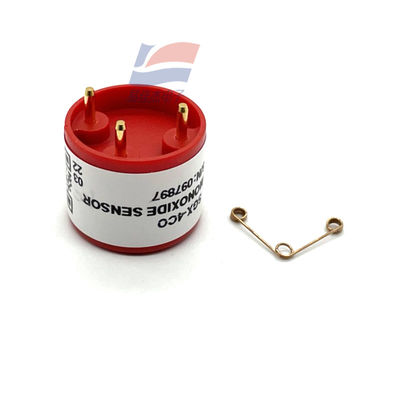

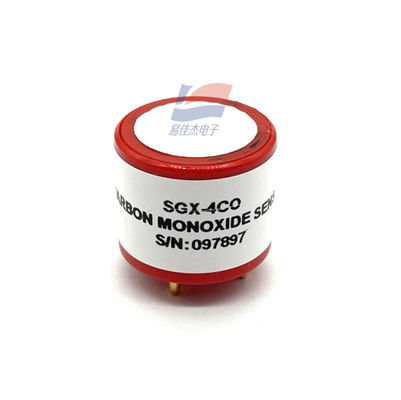

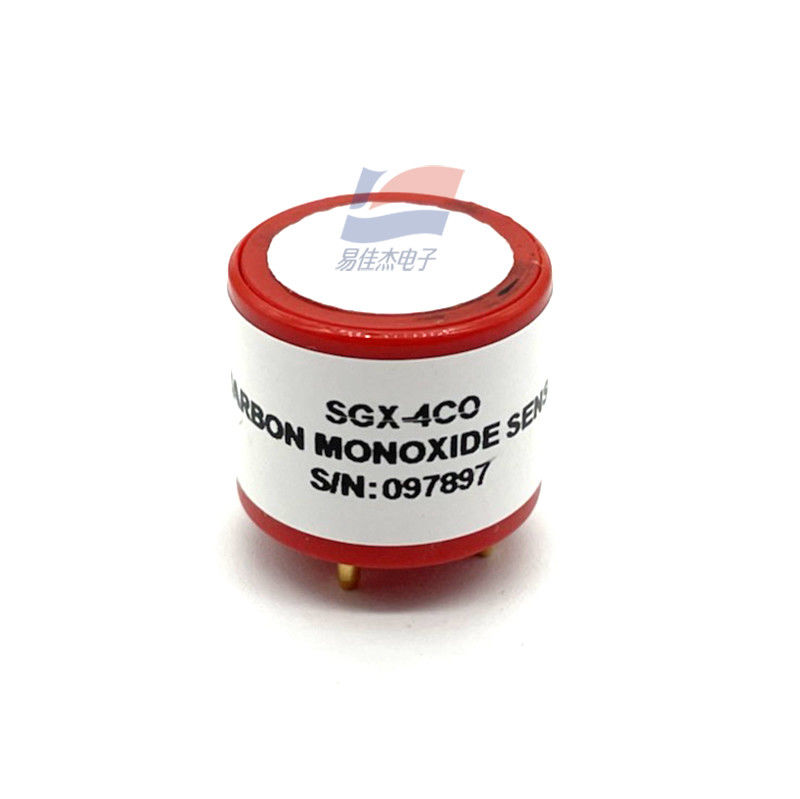

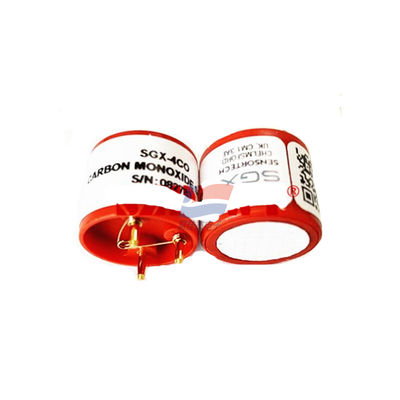

Large Image : SGX-4CO Carbon Monoxide Gas Sensor Electrochemical 4Series General-purpose Industrial

Product Details:

Place of Origin:	UK
Brand Name:	SGX Sensortech
Model Number:	SGX-4CO

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000pcs/Month

Contact Now

SGX-4CO Carbon Monoxide Gas Sensor Electrochemical 4Series General-purpose Industrial

Description

Target Gas:

CO (Carbon Monoxide)

Measurement Range:

0–2000 Ppm

Sensitivity:

70 ±20 NA/ppm

T90 Response Time:

<30 S

Highlight:

SGX-4CO carbon monoxide gas sensor

electrochemical CO gas sensor

industrial carbon monoxide detector

SGX-4CO Carbon Monoxide Gas Sensor Electrochemical 4Series General-purpose Industrial

4-Series electrochemical CO sensor, general-purpose industrial carbon monoxide detection probe, standard φ20mm 4-series package.

Typical Applications

- Portable toxic gas detectors
- Fixed industrial CO alarms
- CO monitoring in underground utility tunnels, metallurgical facilities, equipment rooms, and parking garages
- Building air quality monitoring

Specification:

Temperature range	-30°C to +50°C
Humidity	15–90% RH (non-condensing)
Recommended load resistance	10Ω
Resolution	Typical 500 ppb
Expected life	≥24 months (in air)
Maximum overload	5000 ppm

SGX-4CO Carbon Monoxide Gas Sensor Electrochemical 4Series General-purpose Industrial
