GS+5SO2 Sulfur Dioxide Gas Sensor 5-Series Electrochemical 3 Signal Pin

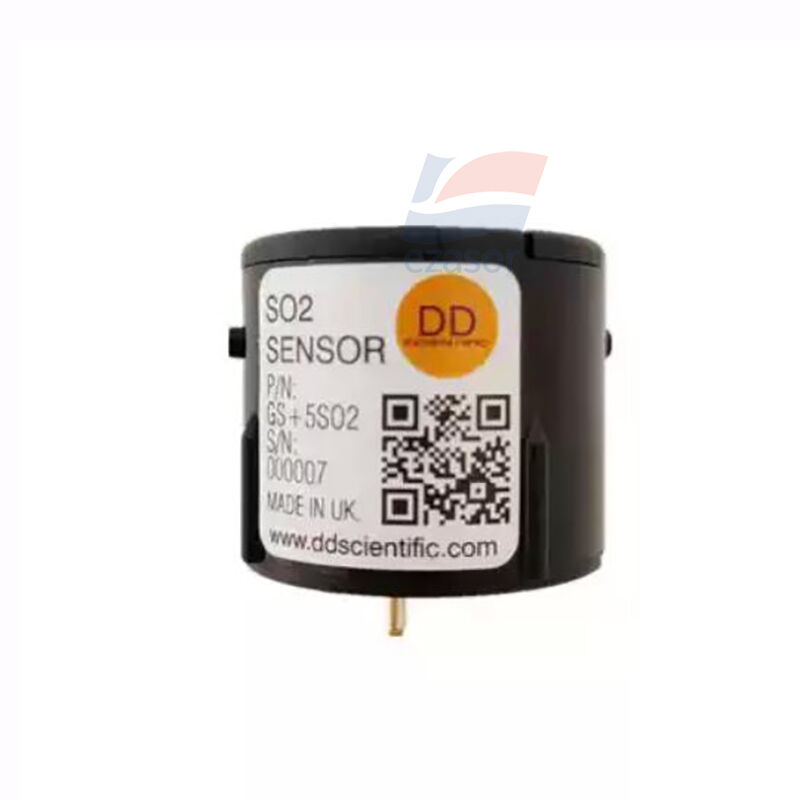

Large Image : GS+5SO2 Sulfur Dioxide Gas Sensor 5-Series Electrochemical 3 Signal Pin

Product Details:

Place of Origin:	UK
Brand Name:	DDS
Model Number:	GS+5SO2

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	10000pcs/Month

Contact Now

GS+5SO2 Sulfur Dioxide Gas Sensor 5-Series Electrochemical 3 Signal Pin

Description

Target Gas:

SO2 (Sulfur Dioxide)

Measurement Range:

0 ~ 2000 Ppm

Maximum Overload:

5000 Ppm

Sensitivity:

100 ±20 NA/ppm

Highlight:

GS+5SO2 sulfur dioxide gas sensor

5-series electrochemical gas sensor

3 signal pin gas sensor

GS+5SO2 Sulfur Dioxide Gas Sensor 5-Series Electrochemical 3 Signal Pin

Features

*Good resistance to hydrogen (H₂) interference, reducing false alarms caused by H₂;
*High stability and low drift;
*Compliant with EN50379; widely used in portable flue gas and emission analyzers;
*Typical applications: boiler flue gas, smelting, industrial exhaust gas, and portable SO₂ detectors.

Specification:

T90 response time	<30 s
Bias voltage	0 V (no bias voltage required; simple circuit design)
Recommended load resistor	10 Ω
Resolution	Typically <1 ppm (depending on backend circuitry)
Repeatability	<±2% FS
Operating temperature	-20°C to +50°C
Humidity	15% to 90% RH (non-condensing)
Pressure	800 to 1200 mbar
Expected lifespan	>24 months in air
Pins	3 signal pins + alignment pin

GS+5SO2 Sulfur Dioxide Gas Sensor 5-Series Electrochemical 3 Signal Pin
