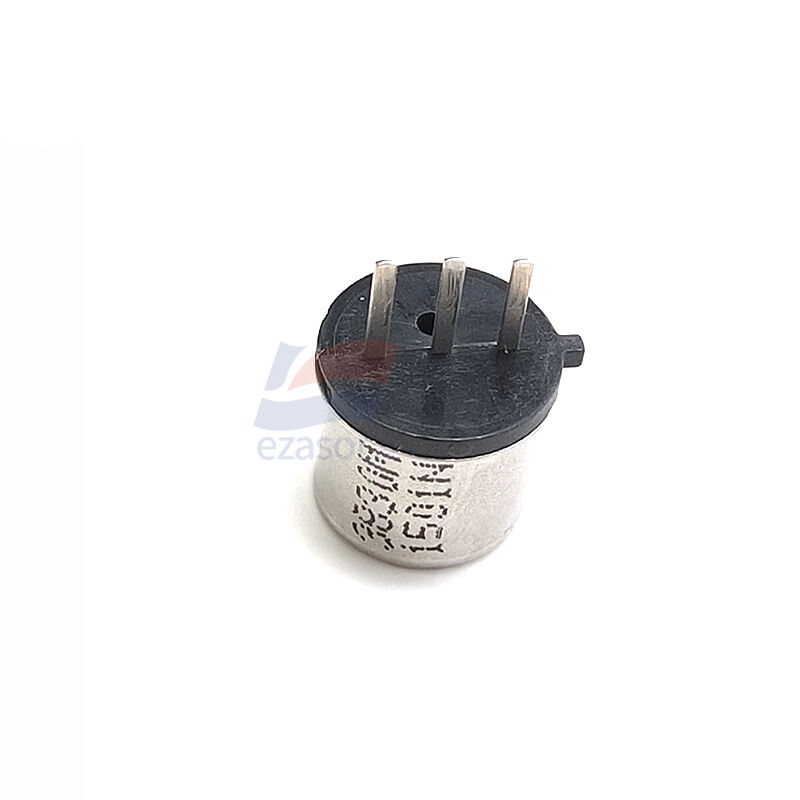

TGS3830-A00 Freon Gas Sensor MOS Semiconductor Refrigerant Metal Packaging

Large Image : TGS3830-A00 Freon Gas Sensor MOS Semiconductor Refrigerant Metal Packaging

Product Details:

Place of Origin:	Japan
Brand Name:	Figaro
Model Number:	TGS3830-A00

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Standard Package
Delivery Time:	3-5Workingdays
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	10000pcs/Month

Contact Now

TGS3830-A00 Freon Gas Sensor MOS Semiconductor Refrigerant Metal Packaging

Description

Target Gas:

R-134a (HFC134a)

Detection Range:

5 ~ 100 Ppm

Sensing Element:

Bead-type MOS Semiconductor

Heater Voltage (VH):

0.8V ±3%

Highlight:

Freon gas sensor MOS semiconductor

Refrigerant gas sensor metal packaging

TGS3830-A00 Freon gas detector

TGS3830-A00 Freon Gas Sensor MOS Semiconductor Refrigerant Metal Packaging

Features
1. High sensitivity and fast response to R134a; suitable for portable refrigerant leak detectors.
2. Lower power consumption compared to traditional Freon sensors.
3. Compact structure with a metal housing and a dust-proof, breathable mesh.
4. Output method: Sensor resistance varies with refrigerant concentration; voltage signals are acquired using a load resistor.

Speficifation:

Circuit voltage (VC)	Max. 5.0 V DC
Heater power consumption	≈100 mW
Heater resistance (RH)	3.0 ± 0.3 Ω (at room temperature)
Sensor resistance in air (Rs)	10 ~ 640 kΩ
Physical dimensions	Metal cap + plastic base, Φ9.2 × 8.5 mm; weight approx. 1.1 g
Expected lifespan	2,000 hours of continuous operation in air
Standard test conditions	20 ± 2°C, 65 ± 5% RH; 1-hour preheating required before testing

TGS3830-A00 Freon Gas Sensor MOS Semiconductor Refrigerant Metal Packaging
