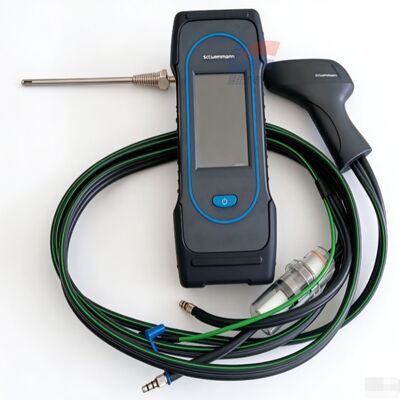

YJJ Si-CA230 Handheld Flue Gas Analyzer with O2 CO NO SO2 Sensors for Boiler Combustion Test

Product Description:

YJJ Si-CA230 Handheld Flue Gas Analyzer with O2 CO NO SO2 Sensors for Boiler Combustion Test

Features:

Basic hardware parameters

- Overall weight: 825g
- Dimensions: 280 × 112 × 55 mm
- Screen: High-definition touch color screen with 480×272 pixels, supports real-time curve display
- Shell: Made of ABS + PC materials, with rubber protective cover; **Protection level IP42**
- Operating temperature: -5℃ ~ +45℃; Storage temperature: -20℃ ~ +50℃
- Communication: Bluetooth wireless (maximum range 15m), USB data export; Can view, store and print reports through mobile phone APP
- Power supply: Built-in rechargeable lithium battery, can be powered by an external power adapter
- Pump: Built-in sampling pump, equipped with condensate water collector + dust filter, protects the sensor

Gas measurement parameters (standard + optional sensors)

>
Up to 6 sensors can be installed. The sensors are pre-calibrated replaceable modules.

1. **O2 Oxygen (Standard)**
Range: 0 - 25% vol; Resolution: 0.01%; Accuracy: ±0.2% vol; T90<30s
2. **CO (H2 compensation) - Carbon Monoxide (Standard Feature)**
Range: 0 - 10,000 ppm; With **automatic dilution protection, capable of measuring up to 50,000 ppm CO**, resistant to hydrogen cross-interference
3. **Optional sensors**: NO, low-range NO, NO2, SO2, low-range SO2, H2S, CxHy hydrocarbons
4. Auxiliary measurements:
- Flue gas temperature, ambient temperature
- Pressure / Negative pressure: -200 to +200 mbar
- Automatic calculations: Combustion efficiency, excess air coefficient, heat loss, CO/NOx emission concentration

Product features

1. Modular and plug-in sensors, quick on-site replacement without the need for the entire machine to be sent back for calibration.
2. Automatic CO dilution protection, high concentration gas will not damage the sensor.
3. Built-in condensate separator + pre-filter for dust, suitable for harsh on-site conditions.
4. Supports data storage and report export, can directly generate combustion debugging / emission detection reports.
5. Supports Bluetooth, allows remote viewing of measurement data via mobile APP and on-site printing.

Typical application

1. **Industrial Boiler and Gas Burner Commissioning and Maintenance**: Gas/Fuel Boiler Combustion Efficiency Testing, Optimization of Air-Fuel Ratio, Energy Saving Commissioning
2. **Flue Gas Emission Testing**: Flue Gas Pollutants (O2/CO/NO/SO2) Detection for Boilers, Kilns, Internal Combustion Engines, and Generator Sets
3. On-site Testing in HVAC, Thermal Power, and Heating Industries; Industrial Combustion Equipment Acceptance and Annual Inspection
4. Simple On-site Emission Monitoring for Environmental Protection, Laboratory Combustion Research
