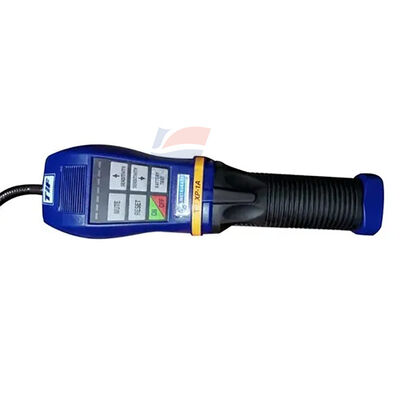

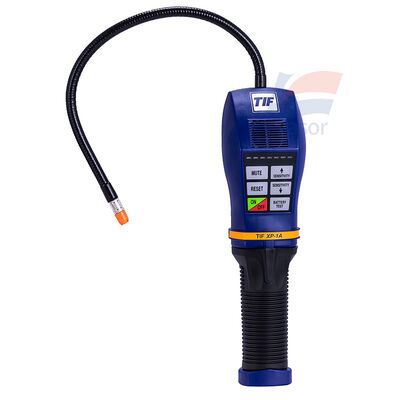

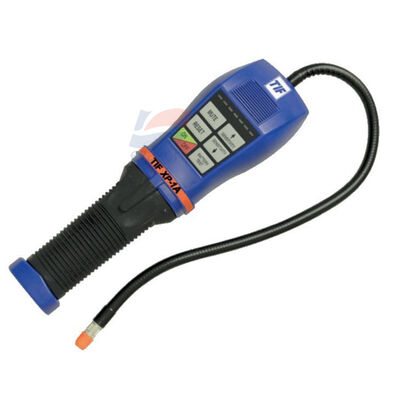

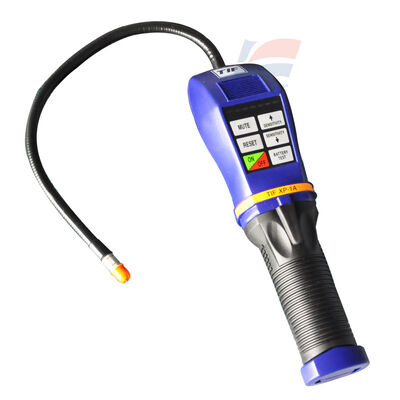

YJJ TIF XP-1A Portable Halogen Leak Detector for SF6 & Refrigerant Gas Leak Testing

Product Description:

YJJ TIF XP-1A Portable Halogen Leak Detector for SF6 & Refrigerant Gas Leak Testing

Features:

XP-1A (TIF Portable SF6 / Halogen Leak Detector) Parameter Description

TIF XP-1A, a portable qualitative halogen gas leak detector, can detect SF6 (sulfur hexafluoride), various halogen refrigerants (R12/R22/R134a, etc.), and is specifically designed for use in power GIS and air conditioning refrigeration industries for leak detection.

Detection Performance Parameters

- Model: XP-1A
- Detected Gas: SF6 (sulfur hexafluoride), all halogen refrigerants (R12, R22, R134a, R404A, etc.)
- Limiting Sensitivity: **< 3g / Year**
- Certified Sensitivity (SAE J1627): R12/R22/R134a can reach 14g / Year
- Sensitivity Ranges: 7 adjustable levels, maximum gain 64 times
- Response Time: Instantaneous response
- Reset Time: 1s
- Preheating Time: Approximately 2s
- Sensor Probe Lifespan: Approximately 20 hours of cumulative use (probe replacement required regularly)

Electrical Parameters

- Power Supply: DC 3V, 2 C-type No. 2 alkaline batteries
- Battery Life: Approximately 30 hours of normal use
- Low Battery Alert: Built-in battery voltage monitoring indicator

Mechanical and Environmental

- Probe: 35.5cm flexible stainless steel probe
- Dimensions: 229 × 65 × 65 mm
- Overall Weight: 560g
- Operating Temperature: **0℃ ~ +52℃**
- Operating Mode: Continuous and uninterrupted detection is possible

Functional Features

- Built-in mechanical pump sampling, active inhalation detection
- Three-color LED + multiple-stage audible and visual alarms, the beeping frequency changes with the leakage volume, and it can be silenced
- One-click reset function

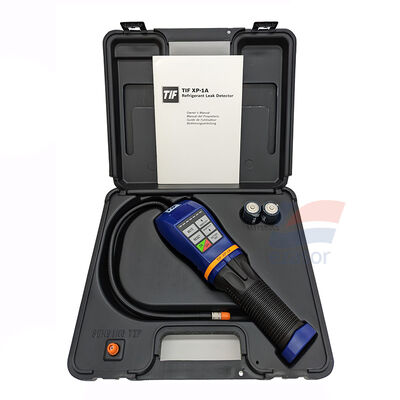

- Handheld, portable, with a hard protective tool box
- Application scenarios: Leak detection for high-voltage electrical SF6 switches, leak detection for refrigeration and air conditioning refrigerant pipelines
